hjb12 - 12t jacking beam

This jacking beam is shipped ready for use. No configuration or assembly required.

It's twin ram operation provides greater operational stability, efficiency and safety. The rans slide transversly, making precise positioning under the vehicle possible. They can also be used independently or in tandem, allowing one or both sides of the vehicle to be lifted.

Surface Engineered for a longer, harder working life - All key components in a Majorlift jack now have their working life greatly extended through a patented surface engineering process. This range of treatments develop iron nitride surface compound layers to toughen the surface and resist rust. The nitrogen-enriched zone can improve yield and fatigue strengths by as much as three or fourfold.

Download Brochure

Hartex Heavy Vehicle Jacking Systems

12T jacking beam Features Include:

  • Air operated twin ram (Total 12 Tonne capacity)
  • Ram operation in pairs or individually
  • 305mm Lifting stroke
  • Positive mechanical safety lock on both rams

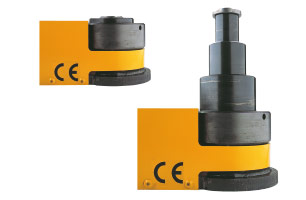

  • 4 sets of slip on ram heads supplied as standard to jack axis, diffs and chassis
  • ISO9002 approved

Image description......

Image description....

Image description....

Image description......

Image description....

Image description....

features & benefits

Model

HJB12T

Twin ram operation

Greater operational stability, efficiency and safety. The rans slide transversly, making precise positioning under the vehicle possible, AND they can be used independently or in tandem, allowing one or both sides of the vehicle to be lifted

Pumps can be either air powered or manually operated

Air gives easy and rapid lift; Manual gives easy double action pumping

Positive mechanical safety lock on all rams

Greatly enhanced operator safety especially against accidental lowering

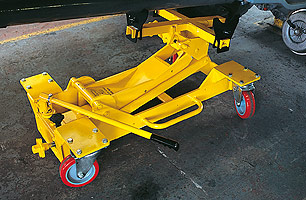

Newly introduced, load bearing supports and spring loaded rollers

Smooth, easy and safe movement along the pit

Accessories supplied as standard

Benefit beam is supplied complete with a full set of slip-on ram heads to assist in jacking axles, diffs and chassis, etc.

Control valves as standard

Precise lowering for optimum safety and working conditions

Pressure relief valve

Automatically prevents overloading

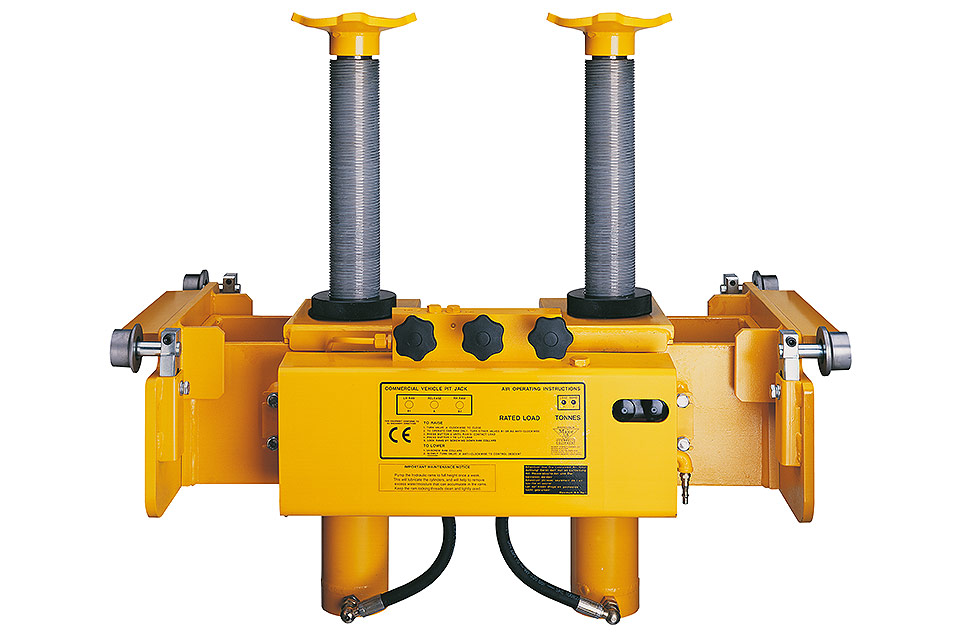

12t jacking beam for truck and bus workshop pits
