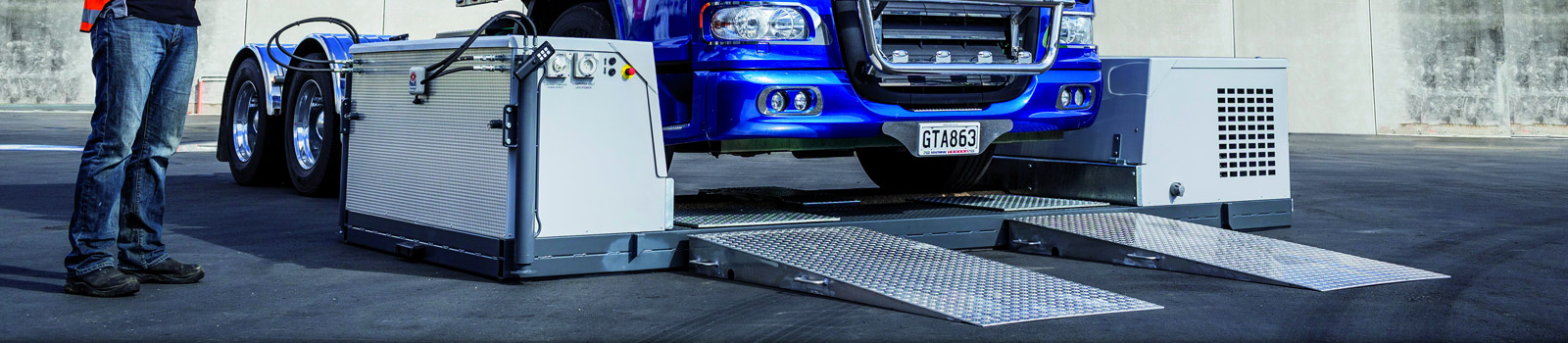

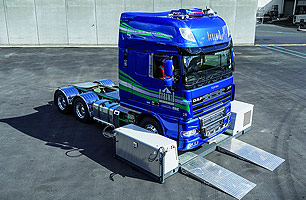

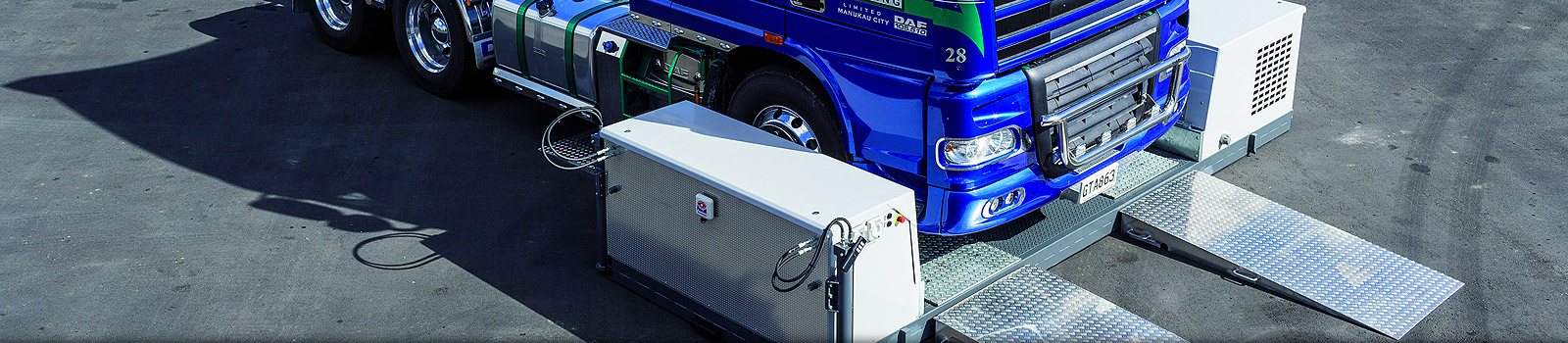

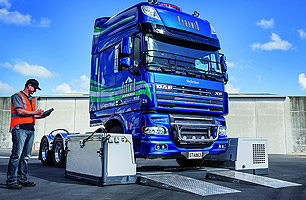

MOBILE brake tester - MBT 5251

For vehicles up to 18t axle weight.

Mobile Usage

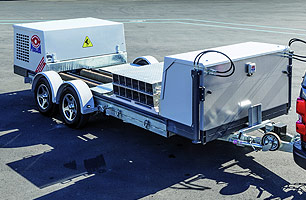

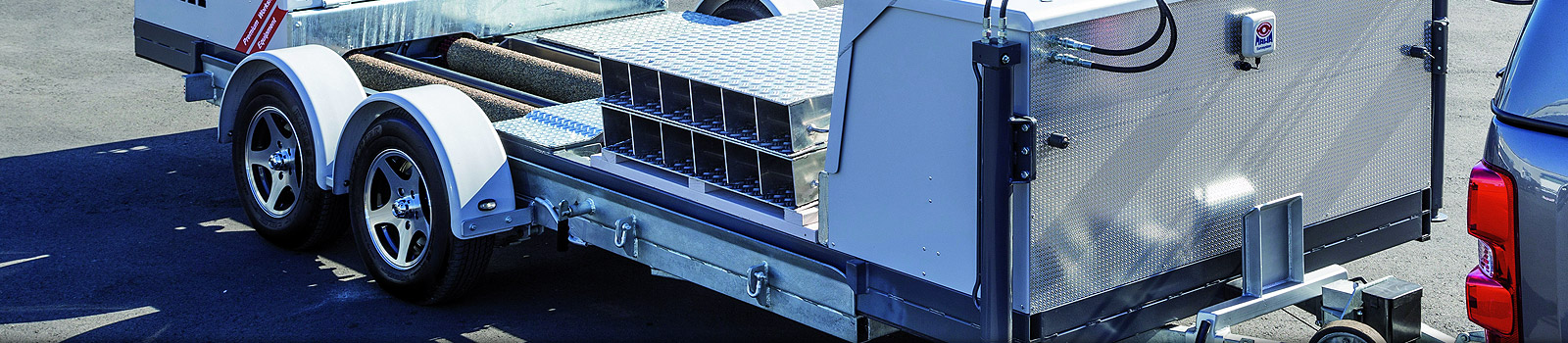

With its hydraulic lift and inbuilt generator the test station is lifted up to separate from the trailer ready for mobile usage.

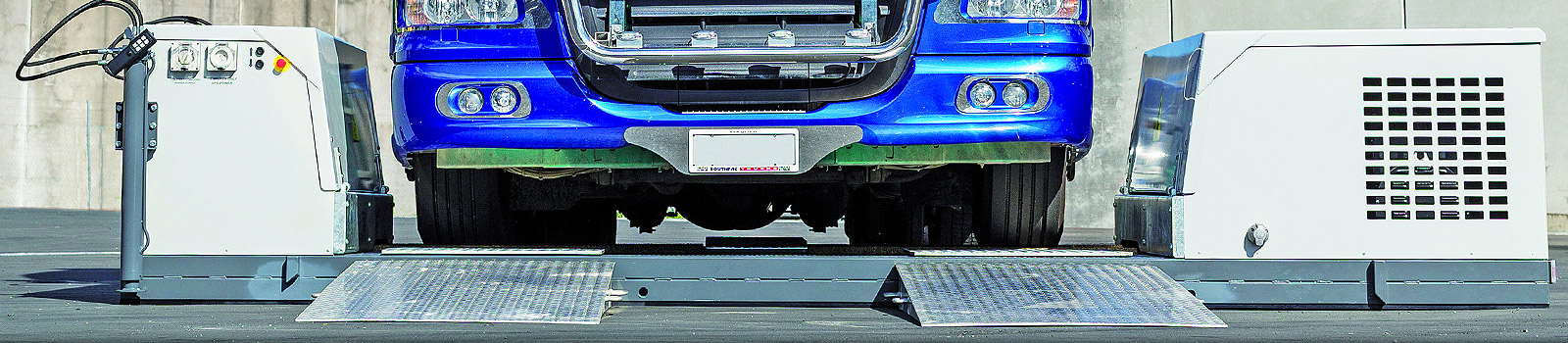

Minimum Drive-over Height

Via the compact roller set version vehicles with low floor clearnance can be tested trouble-free be tested trouble-free.

Brochure Downloads:

Diagnostics Brochure

Mobile Brake Tester Features Include:

  • Compact roller set version for mobile usage
  • Low drive-over height of only 170 mm
  • Digital measurement value recording and storage
  • Durable, service-friendly technology
  • Integrated dynamic weighing device

Roller Brake Tester Model: MBT 5251. For mobile brake testing on vehicles up to 18 t axle weight

Minimum Drive-over Height - via the compact roller set version vehicles with low floor clearance can be tested trouble-free

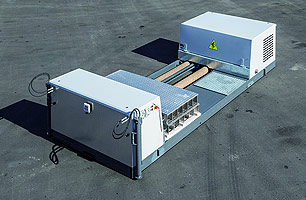

With its hydraulic lift and inbuilt generator the test station is lifted up to separate from the trailer ready for mobile usage.

Technical Specifications - Roller brake tester

Axle load (permissable drive-over load)

18t

Drive Power

(2x) 11kW

Test Speed

2km/h

Voltage supply / fuse (self powered)

400 V, 3 phases, 50 Hz / 63 A delay

Display accuracy

2 % of measurement range end value & 2 % difference between left and right side

Track width (Min/Max)

Min = 400mm, Max = 2800mm

Roller Length

1200mm

Roller Diameter

130mm (150mm optionally)

Roller Center Distance

450mm

Minimum Drive-over Height

170mm

Weight of mobile unit incl. trailer

approx. 3000kg

Dimensions of test lane without ramps

1700 x 4850 mm

Technical Specifications - portable control unit

Display Unit

W-LAN

Control

Integrated control PCB

Display Range

0-40 kN

Interface Connection

VGA, Ethernet. LAN & USB for printer

Display accuracy

2 % of measurement range end value & 2 % difference between left and right side

Technical Specifications - axle play tester

Axle load max.

20t

Movement each side max.

100mm

Thrust each side max.

30000 N

Control Unit

Wireless with build-in handlamp
