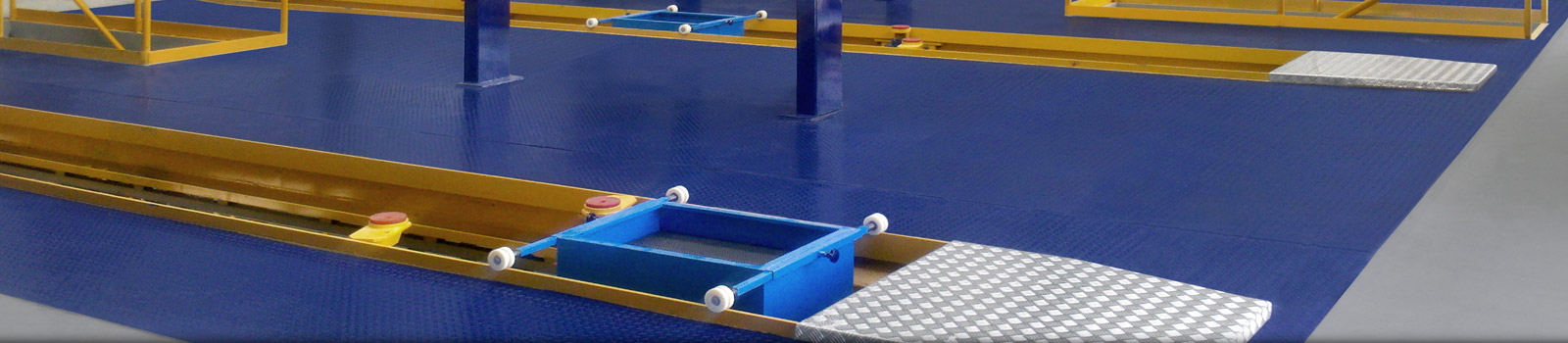

Suspended Ceiling workshop Pits for trucks & buses

When maximising the number of trucks and buses that need to be serviced at your facility is important, then nothing beats the efficiency and throughput of a Hartex Suspended Ceiling pit™.

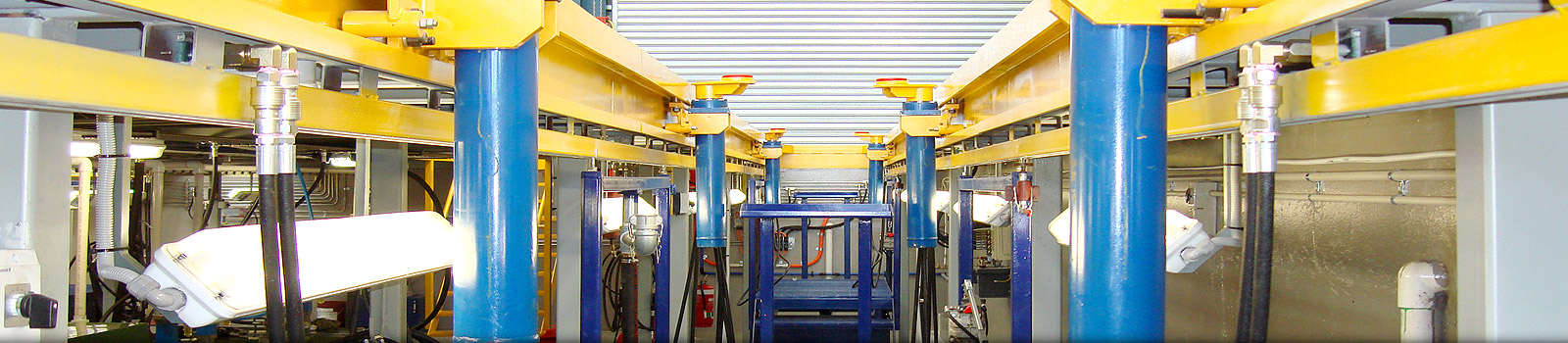

Pioneered by Hartex almost 30 years ago, this style of pit provides an expansive uninterrupted work area under a solid steel deck 2.3m high. The generous working height of the deck means the area under the suspended ceiling pit can be used to accommodate bulk oil tanks, consumables like oil filters and incorporate lubrication and heavy vehicle jacking systems.

The 100T roll over capacity of a Hartex two level servicing suspended ceiling pit means that a fully loaded road train combination can be elevated on jacks, serviced, and then sent on its way in a matter of minutes. This is the preferred pit system of most busy transport and bus fleet organisations and truck dealerships.

The Hartex pit jackspictured are catered to suit the specific needs of your fleet and is another innovation by Hartex to make the service pit environment safer and more productive to use.  Check out our complete range of Jacking Systems & Beams to suit your specific work or fleet.

Click to view project page with gallery and information.

  • Number and Length of bays to suit your needs
  • Two sets of access stairs and handrails, one set for each end fitted between bays
  • Priming of steel work with Redox Primer
  • Lubrication equipment - above/under deck
  • Central sump for trade waste collection
  • Storage space for bulk oil tanks (safe binding compliant with EPA requirements)
  • Explosion proof lighting & Ventilation
  • High working area of 1.45m allows for comfortable working conditions
  • Quick installation, minimising downtime
  • Oil store can be located within pit structure
  • Complete under deck area is open with mechanics free to move from one bay to the next without getting out of the pit system
  • Other resources like lubrication systems can be shared within the bays

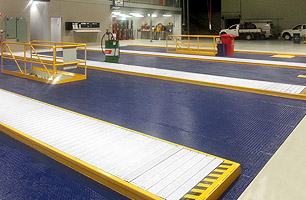

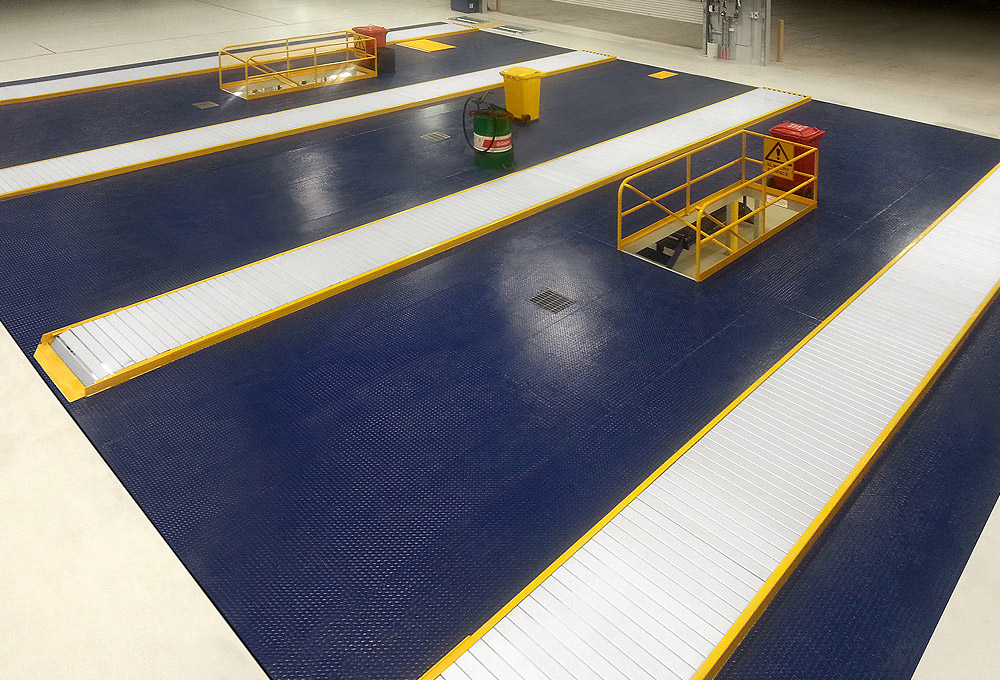

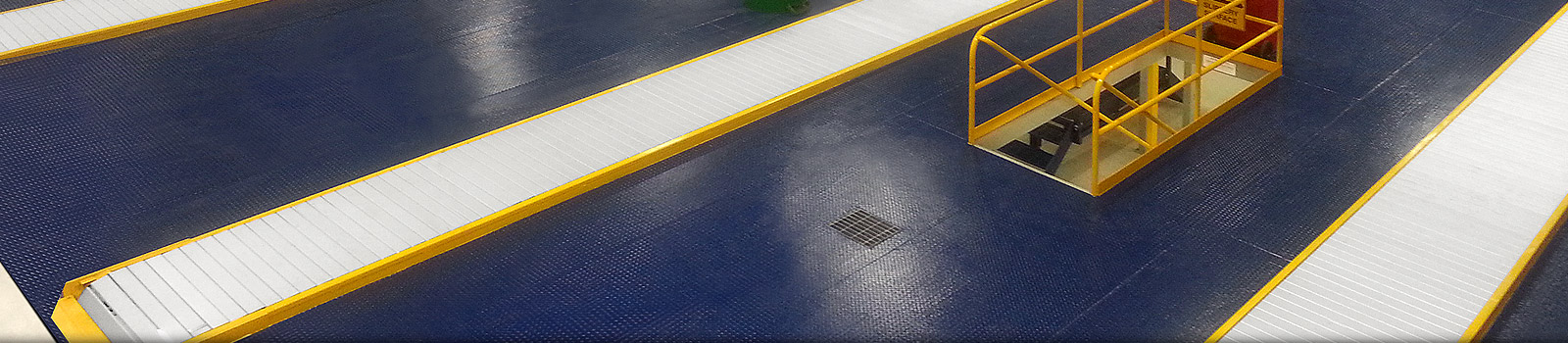

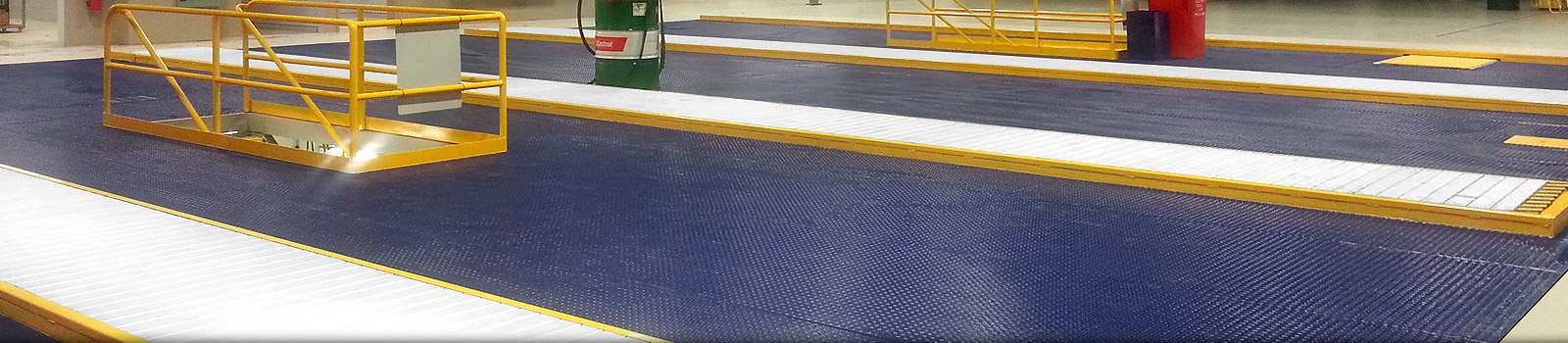

Completed Suspended Ceiling Pit with 3 bays

Completed Suspended Ceiling Pit with 3 bays

Completed Suspended Ceiling Pit with stair tunnel

Completed Suspended Ceiling Pit with stair tunnel

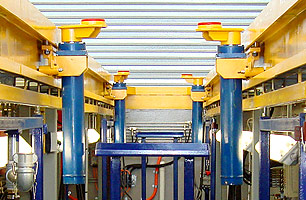

Heavy Vehicle Pit Jacking System

Hartex Heavy Vehicle Pit Jacking System, showing travelling platform suspended under pit

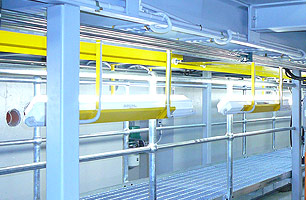

Workhop Service Pit Lighting - Class 1, Zone 2

Workhop Service Pit Lighting - Class 1, Zone 2. Shows fixed working platform

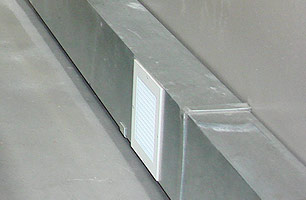

Pit Ventilation & Fume Extracton

Pit Ventilation & Fume Extraction running the length of the pit

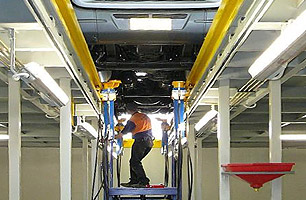

Heavy Vehicle Pit Jacking System

Heavy Vehicle Pit Jacking System, showing travelling platform suspended under pit

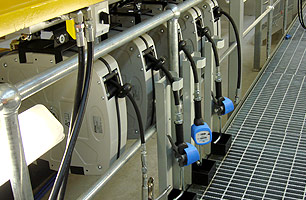

Lubrication Systems, hose reels, waste oil tanks, dispensers and more

Lubrication Systems, hose reels, waste oil tanks, dispensers and more

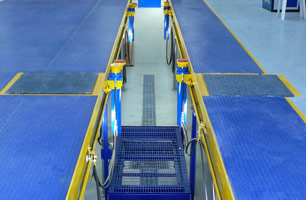

Suspension Tester, picture showssuspended travelling work platform

Suspension Tester shown with suspended travelling work platform

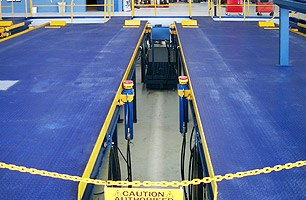

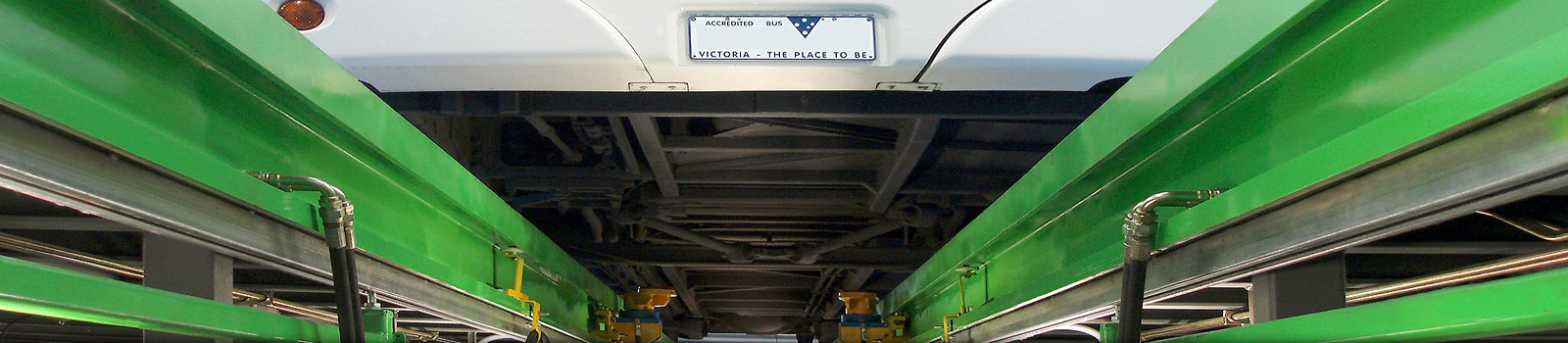

Suspended Ceiling Pit for Bus Workshop

Suspended Ceiling Pit for Bus Workshop Facility

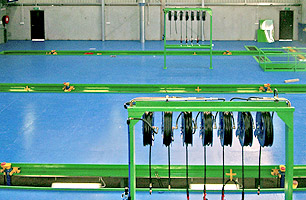

Suspended Ceiling Pit with Lubrication Gantry's and Side Access Stairs & Tunnels

Suspended Ceiling Pit with Lubrication Gantries

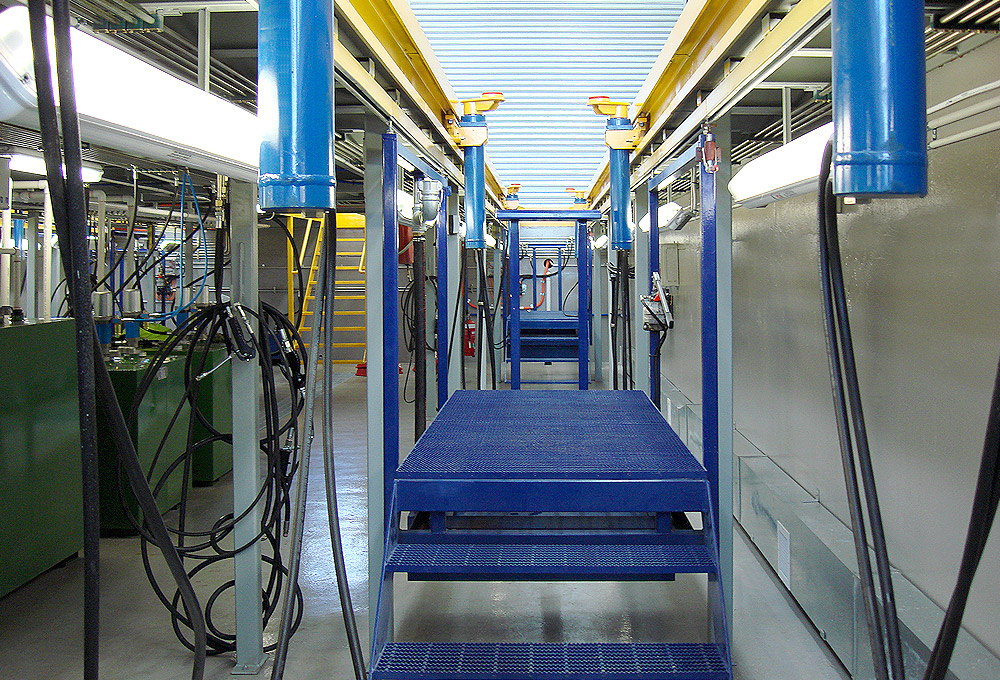

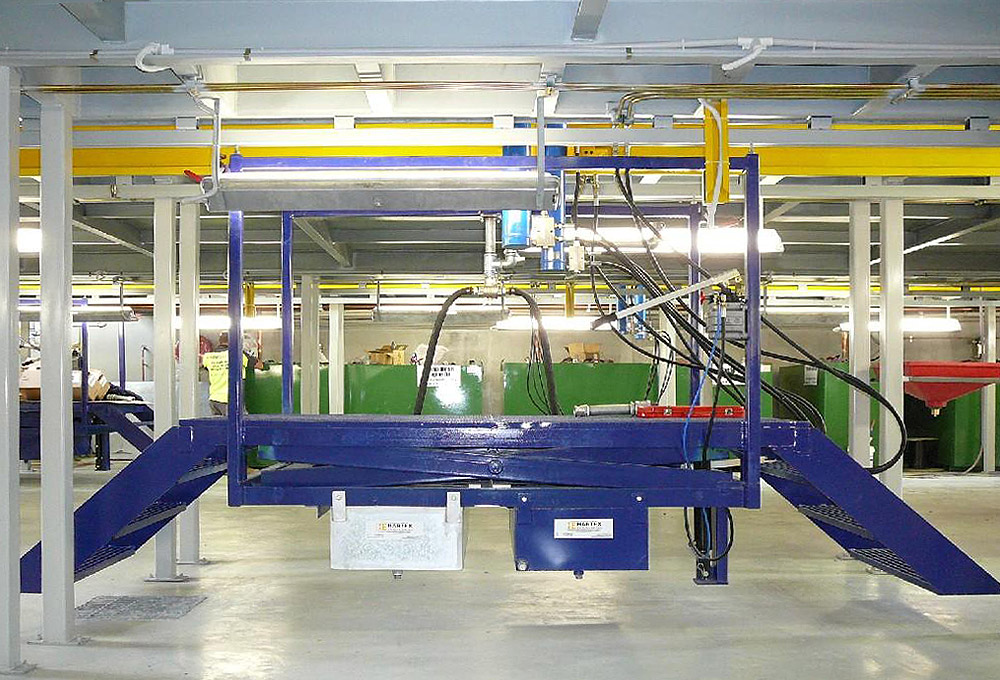

Suspended Ceiling Pit showing travelling platform with stairs & lubrication tanks

Suspended Ceiling Pit with travelling platform stair entry & waste oil & coolant tanks

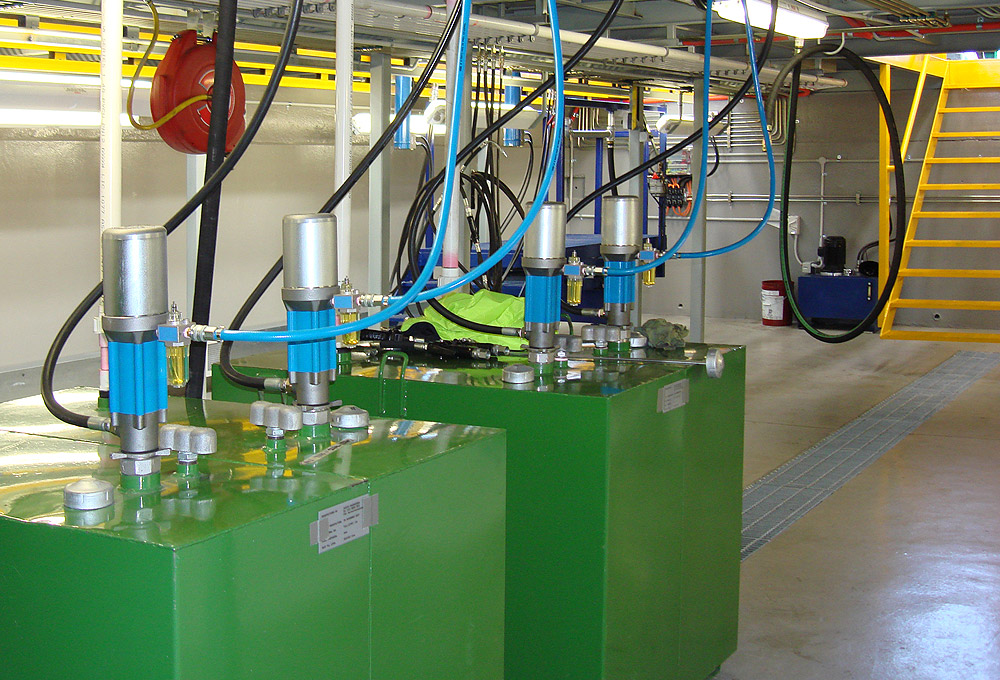

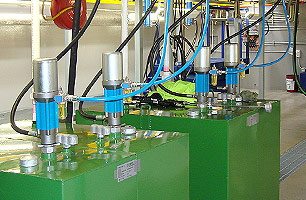

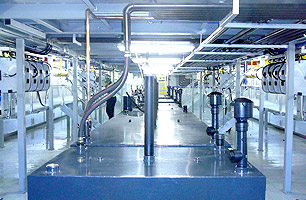

Suspended Ceiling Pit showing Lubrciation Systems

Suspended Ceiling Service Pit with Lubrciation tanks, pumps & dispensers

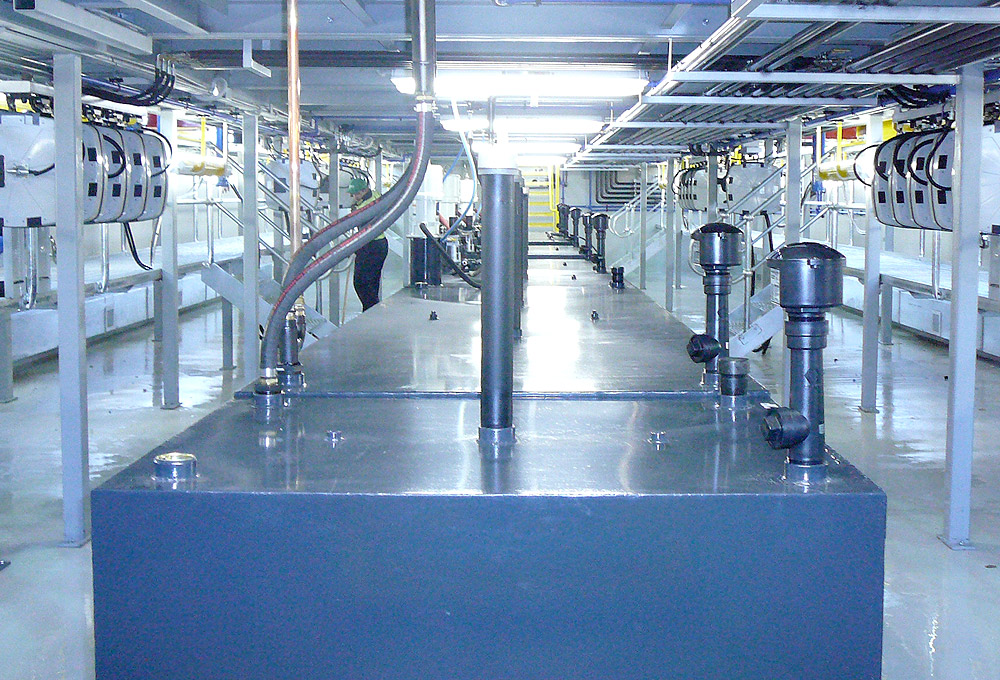

Suspended Ceiling Pit showing Lubrciation Systems

Suspended Ceiling Service Pit with Lubrciation equipment including electronic tank monitoring

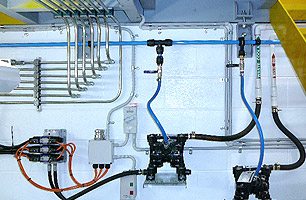

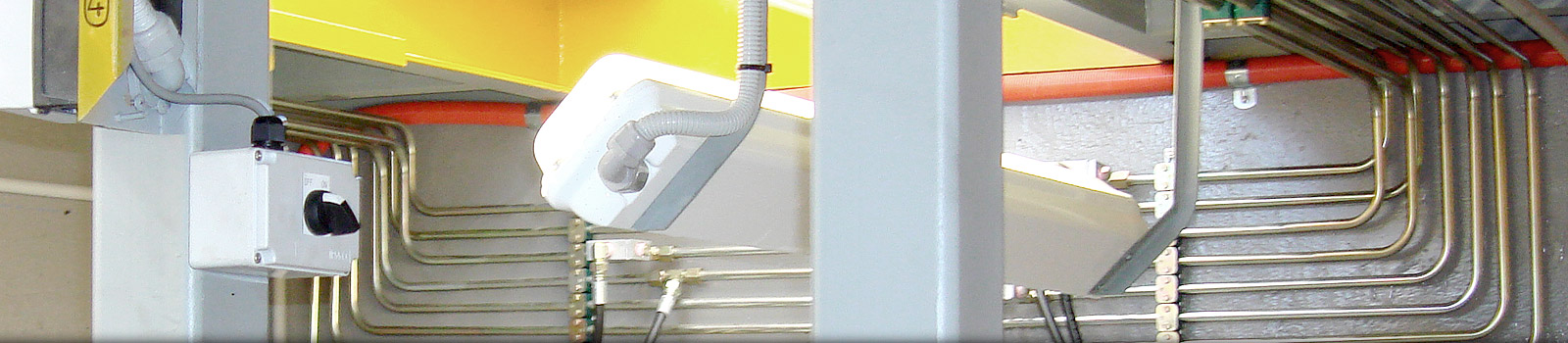

Suspended Ceiling Pit showing Lubrciation High pressure lines

Suspended ceiling workshop pit showing waste oil and waste coolant pumps

All of our workshop pits and service bays come with a 25 year structural warranty, making Hartex pits the most durable long lasting pits in the world

We export to all global markets and have custom compliance packages to suit design standards and rules for USA, Japan and Europe, the Middle East, Indonesia & Malaysia.

Technical Specifications

Pit Opening

950mm - 1100mm

Pit Depth

2.25m

Bay Centre

4.5m - Can be altered to suit as required

Access

2 x Sets of access stairs and handrails, one set for each end fitted between bays

Coating

Top deck finished in 2 pack epoxy in colour of your choice
