Graco hose reel range

A robust frame, hose length and size are important, but the spring, latch and swivel are really the core of hose reel. The new spring design makes it easy to pull down, and a spring latch that retracts the hose so you don't have to fight to get it to operate. Plus, a durable full-flow swivel to maximize material flow with minimal pressure drop.

custom installation

All of Hartex Engineering lubrication installations are designed and installed to the specific customer requirements.

trusted manufacturing

Hartex Engineering uses the premier lubrication range of Graco and Tecalemit in a large majority of its installation because of their durability and wide product ranges.

Lubrication Hose Reel Range Features:

  • Single or Dual pedestal options
  • improved high demand spring retraction
  • Full-flow swivel
  • Spring tension adjustment
  • Larger hose capacity with smaller profile
  • improved latch design
  • Durable finish in a range of colours

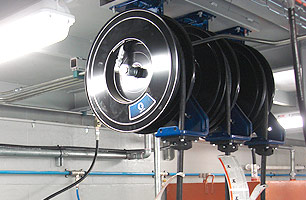

Lubrication hose reels mounted to roof of suspended ceiling workshop pitLubrication hose reels mounted to roof of suspended ceiling workshop pit

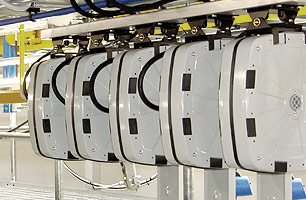

Encased lubrication hose reels mounted to roof of suspended ceiling workshop pitEncased lubrication hose reels mounted to roof of suspended ceiling workshop pit

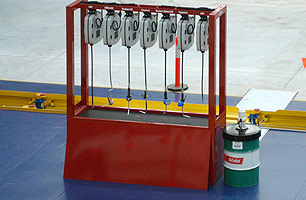

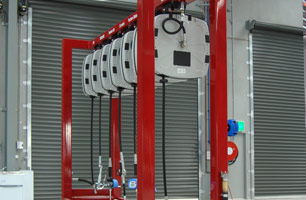

lubrication hose reels in single gantry along side prefabricated workshop pitlubrication hose reels in single gantry along side prefabricated workshop pit

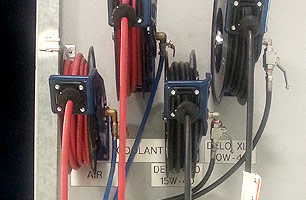

lubrication hose reels mounted on external building wall at entry to workshop facilitylubrication hose reels mounted on external building wall at entry to workshop facility

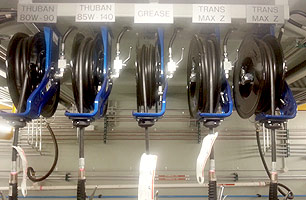

lubrication hose reels mounted inside suspended ceiling workshop pit, shows high press lines & systemslubrication hose reels mounted inside suspended ceiling workshop pit, shows high press lines & systems

lubrication hose reels in single gantry along side prefabricated workshop pitlubrication hose reels in single gantry along side prefabricated workshop pit

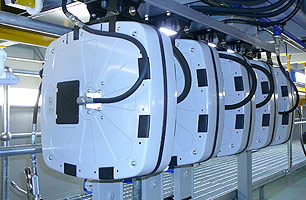

Encased lubrication hose reels mounted to roof of suspended ceiling workshop pit, reels shown include reel enclosuresEncased lubrication hose reels mounted to roof of suspended ceiling workshop pit, reels shown include reel enclosures

lubrication hose reels in single gantry with dual workshop service bayslubrication hose reels in single gantry with dual workshop service bays

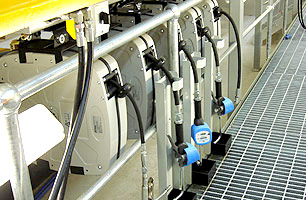

Encased lubrication hose reels mounted to roof of suspended ceiling workshop pit showing dispensers along side pit openingEncased lubrication hose reels mounted to roof of suspended ceiling workshop pit showing dispensers along side pit opening

Graco LD Series Hose Reel Range (Entry level)Graco LD Series Hose Reel Range (Entry level)

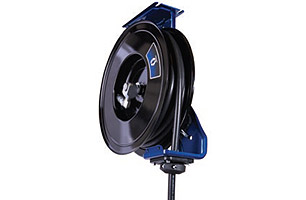

Graco SD Series Hose Reel Range (Professional level)Graco SD Series Hose Reel Range (Professional level)

Graco XD Series Hose Reel Range (High Performance)Graco XD Series Hose Reel Range (High Performance)

Technical Specifications

LD

SD

XD

Entry level hose reels designed for standard-duty applications

Professional level hose reels designed for frequent, everyday use in a wide variety of applications

High performance hose reels designed for heavy-duty jobs that require high-frequency use, extra strength and durability

Single Pedestal Frame

Single Pedestal Frame

Dual Pedestal Frame

Composite Spool

Metal Spool

Metal Spool

Indoor Use

Indoor and Moderate Outdoor Use

Rugged, Indoor and Outdoor Use

Enclosure Available

Enclosure Available

Open Models

Compact Design Fits in Small Spaces

Compact Design Fits in Small Spaces

Narrow Footprint

Non-Sparking Ratchet

Non-Sparking Ratchet

Non-Sparking Ratchet





Sealed Springs with in-field Spring Adjustment





Sealed Roller Bearings
