4 post hoist for trucks & buses - 800 series

Hartex provides the largest range of 4 Post Hoists for the Truck and Bus industry throughout Australia & New Zealand. The Hartex 4- Post Hoist is available in 10 different capacities ranging from 5T to 30T.

It is Electro Hydraulically operated and is ruggedly built for years of trouble free operation at minimal cost.

Recent projects include:

  • Integral Energy, Kings Park NSW
  • Randwick Council, Randwick NSW

Download brochure

Heavy Vehicle Hoists

4 Post 800 Series

  • Solid Constructed hydraulic cylinders
  • Two locking jaws for more security
  • Automatic wheel chocks
  • Push button with safety lock
  • Toe trapping prevented
  • Adjustable track way (optional)

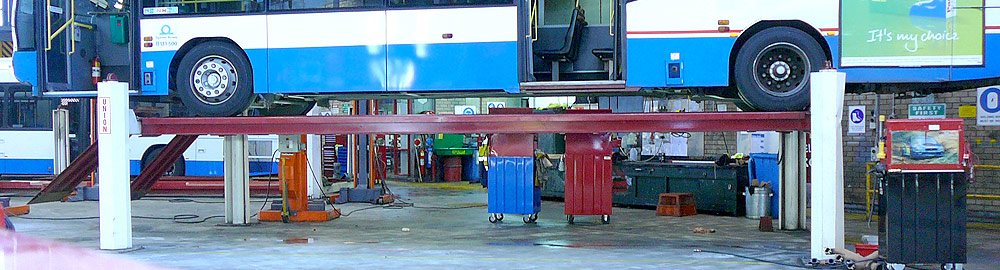

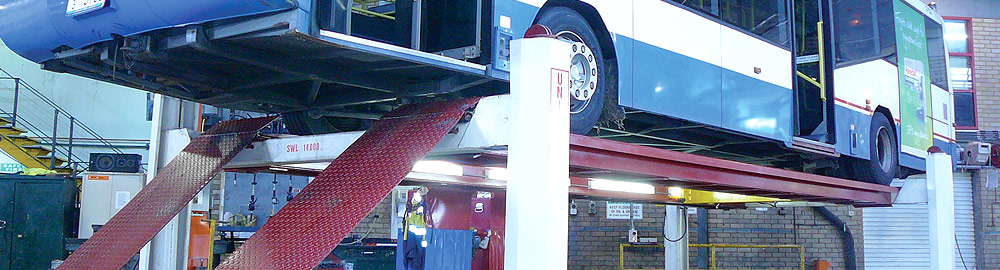

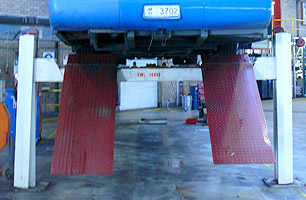

4 post hoist installed at State Transit NSW

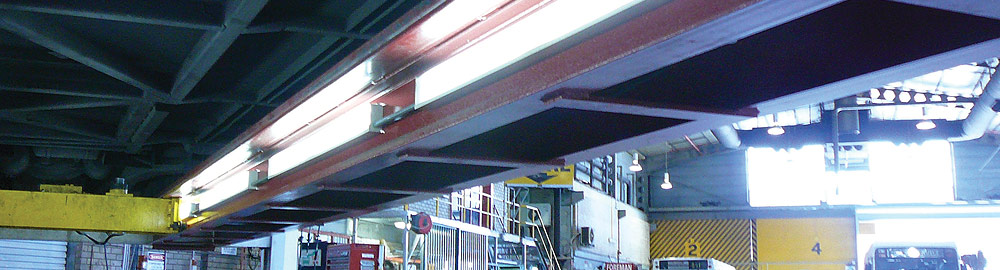

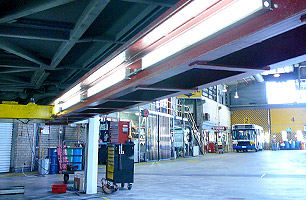

4 Post Hoist lighting system

Image description....



Technical Specifications

Model



Units

8705

8708

8710

8712

8714

Capacity



kg

5000

8000

10000

12000

14000

Lift



sec

35

60

60

60

60

Lower



mm

25

35

40

40

40

Track height



mm

230

280

300

350

350

Track Height



mm

1720

1650

1600

1600

1600

Width between tracks



mm

400

400

400

400

400

Width between tracks



mm

1150

1000

1000

1000

1000

Width between

a

mm

2870

3180

3180

3180

3180

Width of track

b

mm

500

600

700

700

700

Total width

c

mm

3290

3910

3910

3190

3190

Track length

d

mm

5200

7000

8000

8000

8000

Base plate width

e

mm

300

500

500

500

500

Total length

f

mm

5360

7340

8340

8340

8340

Total height

g

mm

2280

2300

2300

2300

2300

Length of ramps

h

mm

1110

1700

1700

1700

1700
