truck & bus suspension testers

The LMS20/2 Suspension Play Detector is recommended for usage in combination with an inspection pit. Operation is via keypad on a wireless LED hand lamp for forward and lateral movement of the test plate.

Benefits & Features of the LMS20/2 Suspension Tester

  • Two test plates installed at floor level in the foundation
  • Slide bearing on a hard-chromed circular guide
  • Defects and wear quickly determined on steering parts,
  • Springs and support part
  • One-handed operation, no pit jack required

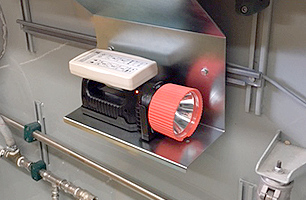

  • Cable-free radio hand lamp RHL II for controlling
  • longitudinal and transverse movements of the test plates

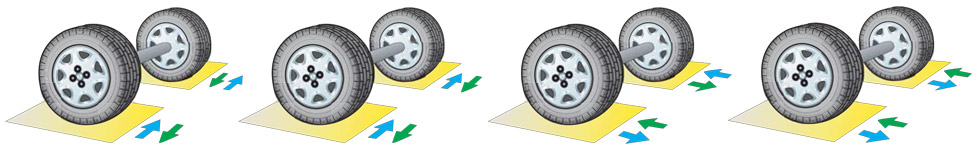

  • Longitudinal and transverse counter movement

Recent projects:

Brochure Downloads:

Diagnostics Brochure

Suspension Tester Features:

  • Rapid inspection of steering leakage, wheel bearings and suspension
  • One-man operation
  • Raising of vehicle not necessary for wheel bearing inspection
  • Extremely rugged, self-supporting design
  • Two flush-mounted test plates
  • Hydraulic drive ensures powerful, smooth movement
  • Low maintenance requirements

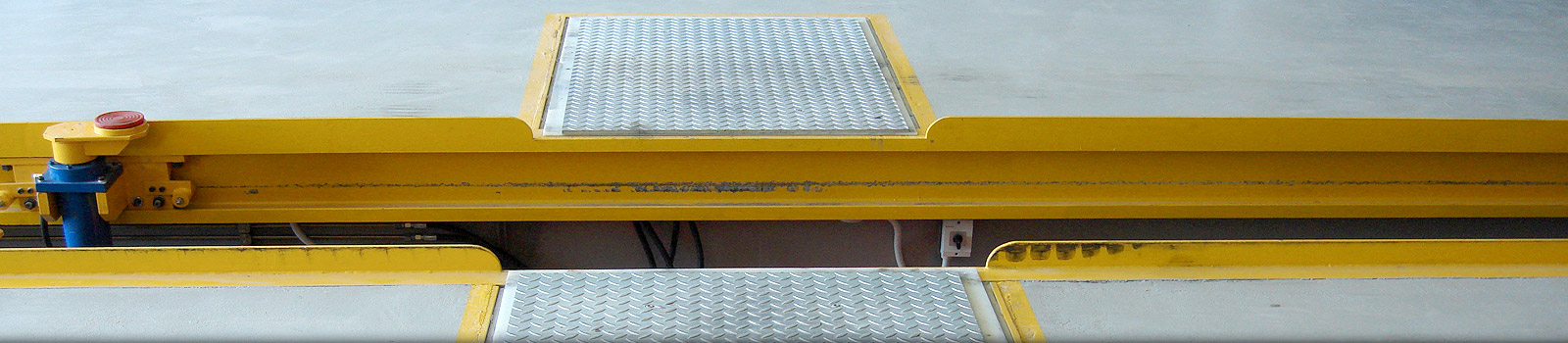

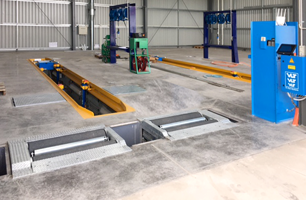

Suspension tester installed in prefabricated service pit with pit safety covers

Hartex suspended ceiling workshop pit showing Jacking System & Suspension Testers

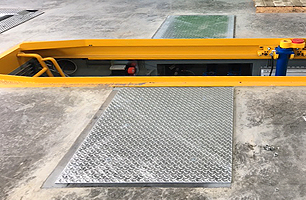

Hartex suspended cieling service pit showing travelling platform & suspension testersHartex suspended ceiling service pit showing travelling platform & suspension testers

Suspension tester in prefabricated drop-in pit at truck service workshop

Hartex suspended ceiling workshop pit with Suspension Testers, Jacking Systems & Brake Testers

Prefabricated RMS workshop pit showing RMS suspension tester with pit jacking systemPrefabricated RMS workshop pit showing RMS suspension tester with pit jacking system

Prefabricated RMS workshop pit showing RMS suspension tester with pit jacking system

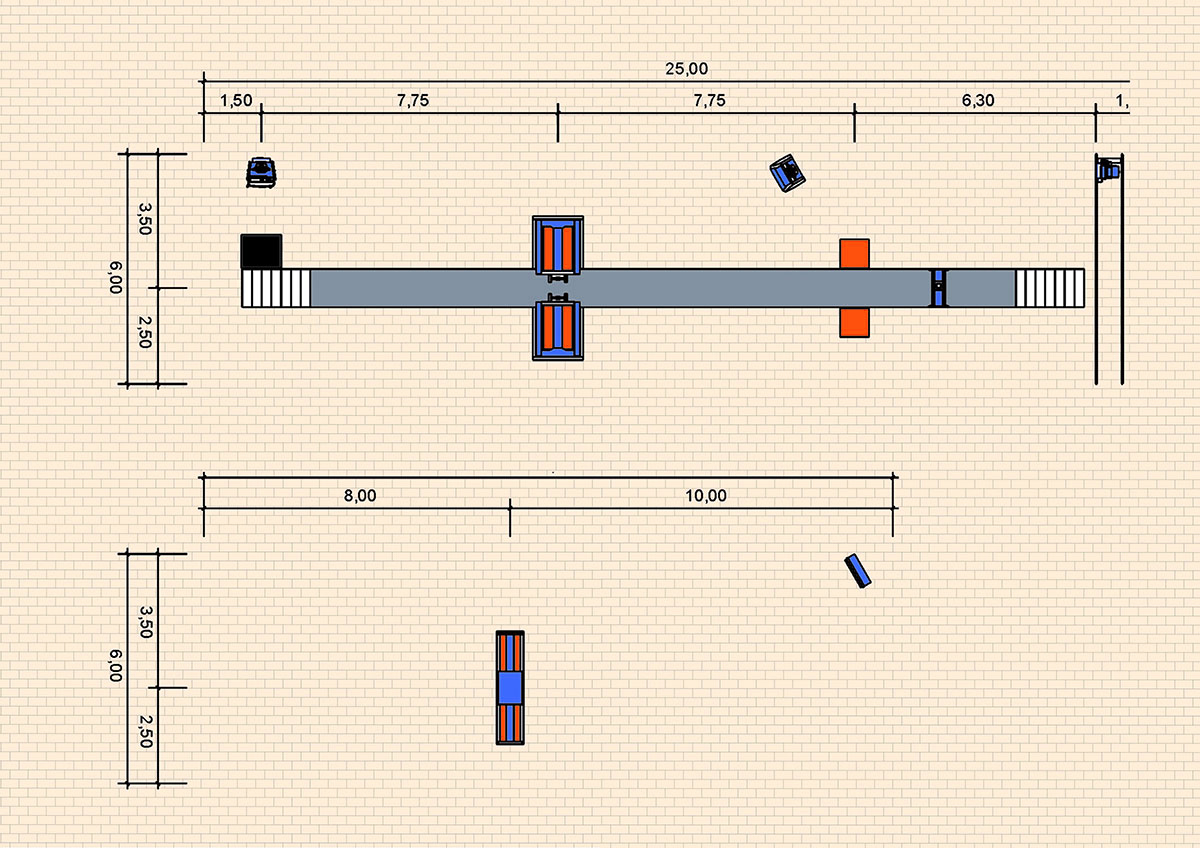

Foundation Plan

Technical Specifications

Max. axle load

20t

Max. axle load per side

10t

Test plate movement

100mm

Hydraulic fluid quantity

15L

Test plate dimensions (L x W x D)

750 x 750 x 232mm

Max. thrust per side

30kN

Max. pressure per side

120 bar

Motor power

2.5kW

Power supply

3 x 400 V/N/PE 50 Hz

Fuse Protection

16 A
