Truck & Bus > Vehicle Hoists > semi scissor lifts

bus & truck semi scissor lifts

The Finkbeiner HDS Lifts are the perfect platform lift for the productivity focussed workshop managers, complete with the Y-tec Semi Scissor design which provides users with better access and visibility.

These lifts come in both a single and tandem scissor option. With a huge 25t or 50t lifting capacity. Available to be installed either in-ground or above ground.

Recent Projects include:

Toll IPEC, Bungarribee, NSW

Download brochure

Heavy Vehicle Hoists

semi scissor lift advantages Include:

  • Versatile use for all repair, service and maintenance works
  • Best visibility and free access from the side and front to rear. No cross bars, no base frame, clear floor
  • Short set up is easy with drive-on low platforms, fast lifting speed.
  • Space optimising with vertical lifting by compact scissors, high lifting height
  • Maximum working safety with double load securing by automatic hydraulic and mechanical all position locks.

Semi Scissor Lift In-ground

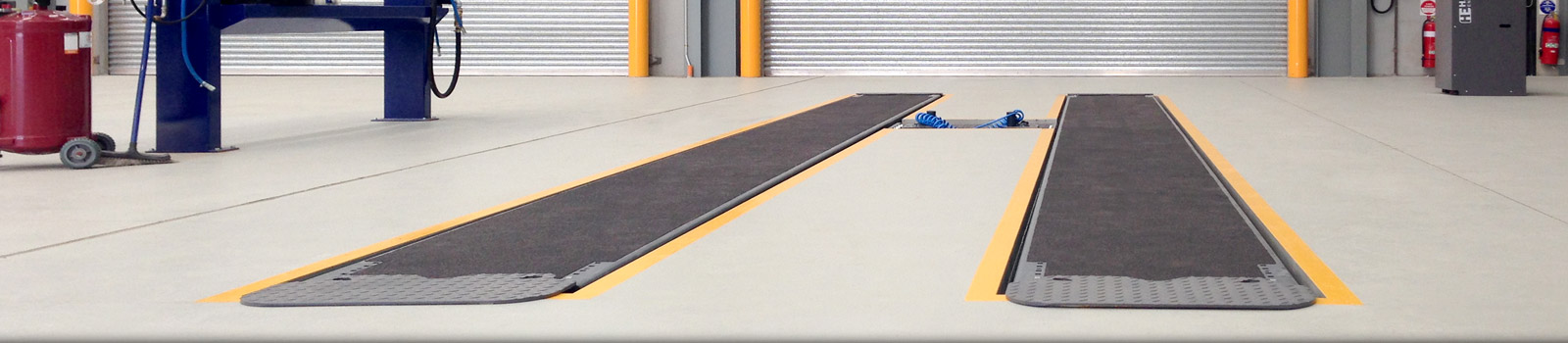

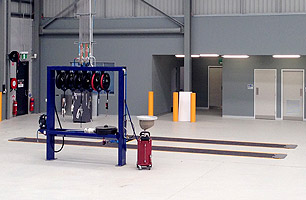

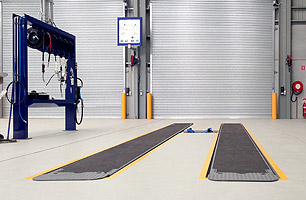

Finkbeiner HDS Semi Scissor Lift In-ground version

Semi Scissor Lift In-ground version

Finkbeiner HDS Semi Scissor Lift In-ground version

Semi Scissor Lift In-ground version

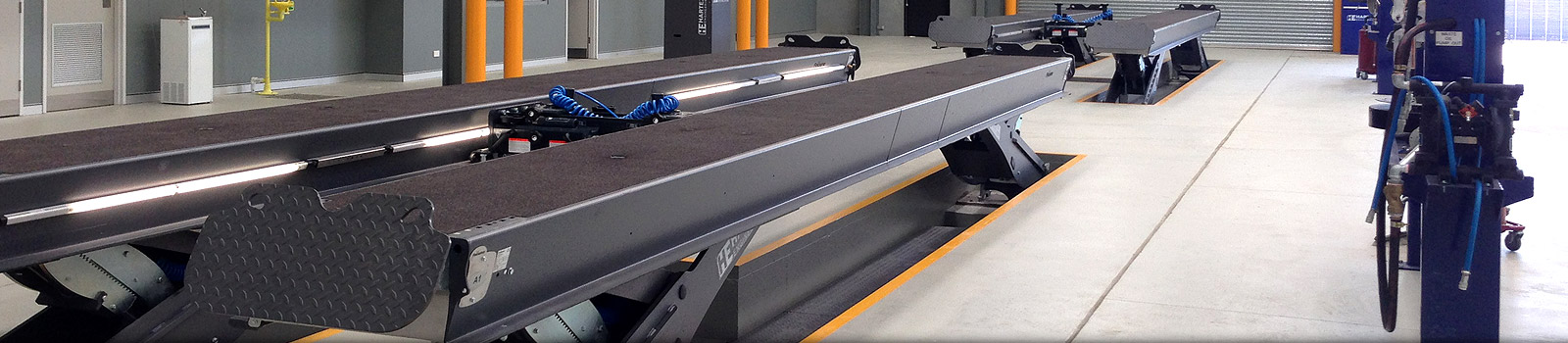

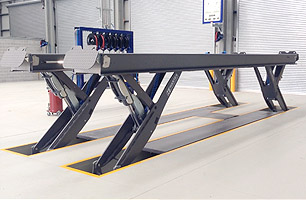

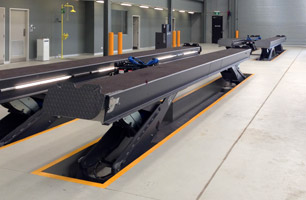

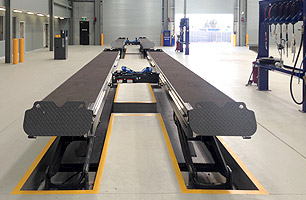

Finkbeiner HDS Semi Scissor Lift in halfway position

Semi Scissor Lift in halfway position

Finkbeiner HDS Semi Scissor Lift in halfway position

Finkbeiner HDS Semi Scissor Lift in halfway position

Finkbeiner HDS Semi Scissor Lift in halfway position

Finkbeiner HDS Semi Scissor Lift in full rise position

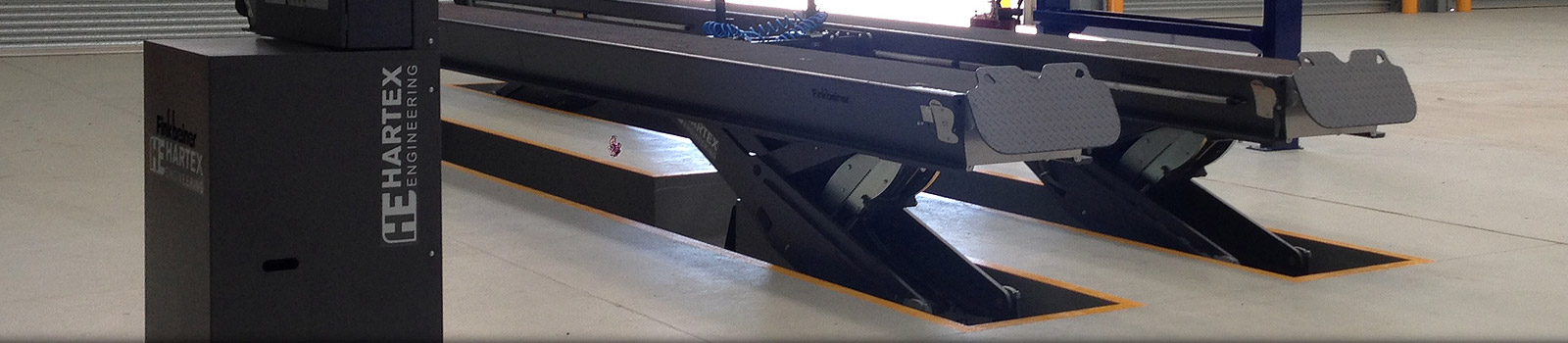

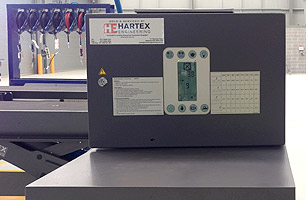

Finkbeiner Semi Scissor HDS Lift Control Box

Finkbeiner Semi Scissor HDS Lift Control Box

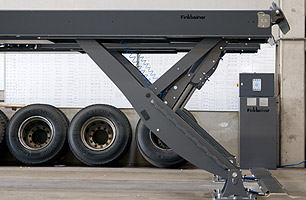

Y-tec semi scissor lift design, with vertical stroke

Y-tec semi scissor lift design, with vertical stroke

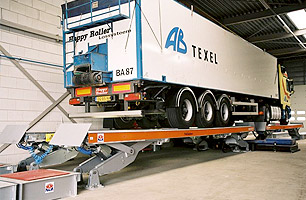

Finkbeiner HDS Lift Above Ground version

Finkbeiner HDS Lift Above Ground version

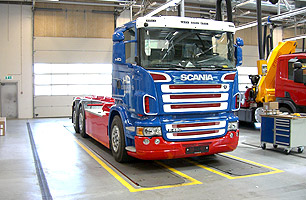

Example showing in-ground semi scissor lift with Scania Prime Mover about to be lifted

Example showing in-ground semi scissor lift with Scania Prime Mover about to be lifted

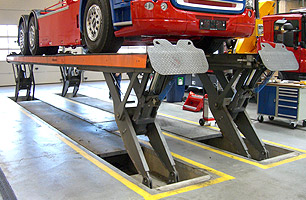

Example of in-ground semi scissor lift with Scania Prime Mover in full lift position

Example of in-ground semi scissor lift with Scania Prime Mover in full lift position

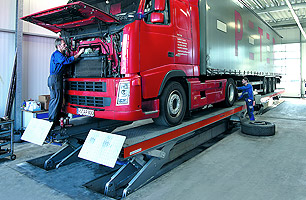

Example of in-ground semi scissor lift with Semi-Trailer lifted into halfway position

Example of in-ground semi scissor lift with Semi-Trailer lifted into halfway position

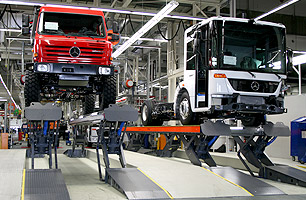

Example of Finkbeiner HDS Semi Scissor Lift in-ground hoists shwoing multiple trucks in full lift position

Example of Finkbeiner HDS Semi Scissor Lift in-ground hoists shwoing multiple trucks in full lift position

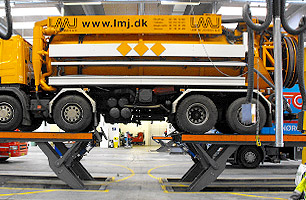

Example of 2 x Semi Scissor Lifts lfiting extra large truck with lifts supporting opposite ends of the vehicle

Example of 2 x Semi Scissor Lifts lfiting extra large truck with lifts supporting opposite ends of the vehicle

Example of above-ground semi scissor lift with Semi-Trailer lifted into halfway position

Example of above-ground semi scissor lift with Semi-Trailer lifted into halfway position

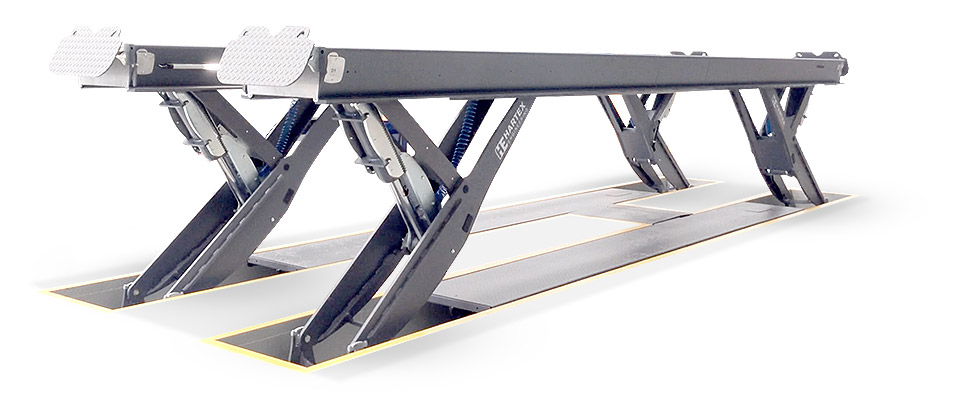

HDS 25-8000 semi scissor lift

Technical Specifications - single semi scissor lift

Model

HDS 25-8000

HDS 25-9000

Fleet Type

Commercial heavy duty vehicle (Buses/Trucks)

Commercial heavy duty vehicle (Buses/Trucks)

Platform Dimensions

8000mm (l) x 750mm (w) x 355mm (ascending height)

8000mm (l) x 750mm (w) x 355mm (ascending height)

Lifting Capacity

25 Tonne (uneven load distribution) / 36 Tonne at even load distribution

25 Tonne (uneven load distribution) / 36 Tonne at even load distribution

Lifting Height

2105mm

2105mm

Stroke

1705mm

1705mm

Lifting Time Loaded

90 sec

90 sec

Synchronisation System

Electronic

Electronic

Drive

Electro-Hydraulic

Electro-Hydraulic

Motor

4 x 2.2kW

4 x 2.2kW

Weight

6 Tonne for 9m Platform

6 Tonne for 9m Platform

Power Supply

400/50 V/Hz

400/50 V/Hz

Control Voltage

24 V DC

24 V DC

Fuse Protection

35 A

35 A

Compressed Air Connection

6 Bar

6 Bar

Concrete Stength/Quality

200mm - C20/25

200mm - C20/25

Protection Class

IP65

IP65

technical specifications - tandem semi scissor lifts

Model

HDS 50-16000

HDS 50-18000

Fleet Type

Commercial heavy duty vehicle (Buses/Trucks)

Commercial heavy duty vehicle (Buses/Trucks)

Platform Dimensions

8000mm (l) x 750mm (w) x 355mm (ascending height)

8000mm (l) x 750mm (w) x 355mm (ascending height)

Lifting Capacity

25 Tonne (uneven load distribution) / 36 Tonne at even load distribution

50 Tonne at uneven load distribution / 66 Tonne at even load distribution

Synchronisation System

Electronic

Electronic

Drive

Electro-Hydraulic

Electro-Hydraulic

Motor

4 x 2.2kW

4 x 2.2kW

Lifting Height

2105mm

2105mm

Lifting Time Loaded

90 sec

90 sec

Weight

6 Tonne for 9m Platform

6 Tonne for 9m Platform

Power Supply

400/50 V/Hz

400/50 V/Hz

Control Voltage

24 V DC

24 V DC

Fuse Protection

35 A

35 A

Compressed Air Connection

6 Bar

6 Bar

Concrete Stength/Quality

200mm - C20/25

200mm - C20/25

Protection Class

IP65

IP65

Servicing & maintenance

With our extensive facilities and wide expertise, Hartex can provide programmed and event based maintenance that includes on-site support, servicing and parts replacement. Insist on Hartex Services to provide and maintain all of your heavy vehicle engineering solutions.

Delivery & Installation

We export, deliver and install both locally throughout Australia and to all global markets. We have custom compliance packages to suit design standards and rules for Australia, USA, Japan, Europe and the Middle East.
