mobile wireless Column lift EHB1005

This series of the mobile column lift is a wireless system. Each column runs on 2 deep cycle 12V batteries. The only time the lifts need to be wired together is when the batteries need to be re-charged. 3-phase power is not required for this lift because the batteries require only 240V power supply to be charged.

The Finkbeiner wireless column lifters represent the latest in German technology, moving away from the old-fashioned screw drive or chain drive mechanisms.

Wireless offers both flexibility & safety

You have the ability to move these to any location within your workshop or even outside your workshop, no need to worry about connecting a power point. With the removal of column connection cables the safety of the staff are ensured.

Recent projects:

  • Dieselworx SA
  • Toll Tasmania TAS
  • Blue Mountains City Council NSW

EHB1005 Wireless Column Lift features:

  • Wireless communication via radio control
  • Power supply by deep cycle batteries, maintenance-free
  • Easy battery charging with only one power source per lift set
  • Operation during charging, allowing for full battery standby
  • Hydraulic Drive
  • Perfect for low volume bus, coach and light commercial vehicle operators
  • Safety of staff and operators with removal of column connection cables

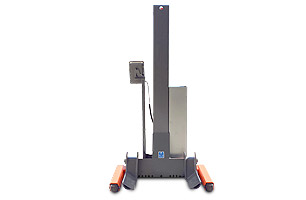

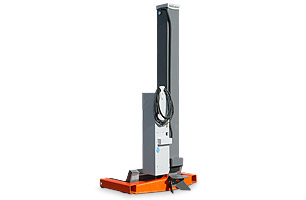

Wireless mobile column lift EHB1005

Wireless mobile column lift EHB1005

Wireless mobile column lift EHB1005

Wireless mobile column lift EHB1005

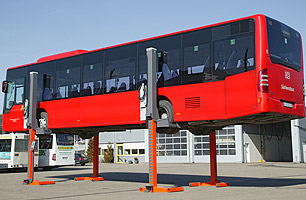

Wireless mobile column lift EHB1005 in raised position

Wireless mobile column lift EHB1005 in raised position

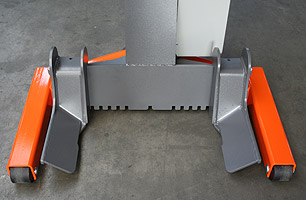

Wireless mobile column lift EHB1005 - Adustable wheel fork (open)

Wireless mobile column lift EHB1005 - Adustable wheel fork (open)

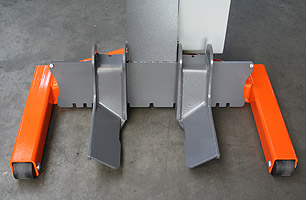

Wireless mobile column lift EHB1005 - Adustable wheel fork (closed)

Wireless mobile column lift EHB1005 - Adustable wheel fork (closed)

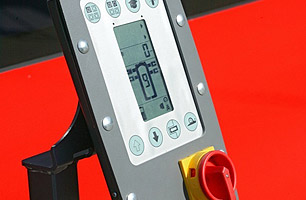

Wireless mobile column lift EHB1005 operation panel

Wireless mobile column lift EHB1005 - Operation panel with digital display

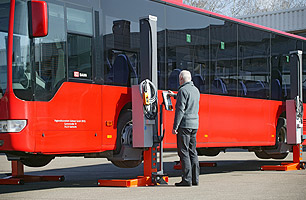

Wireless mobile column lift EHB1005 with bus before lifting begins

Wireless mobile column lift EHB1005 with bus before lifting begins

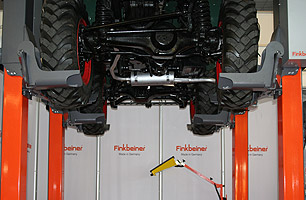

Wireless mobile column lift EHB1005 in full lift position

Wireless mobile column lift EHB1005 in full lift position

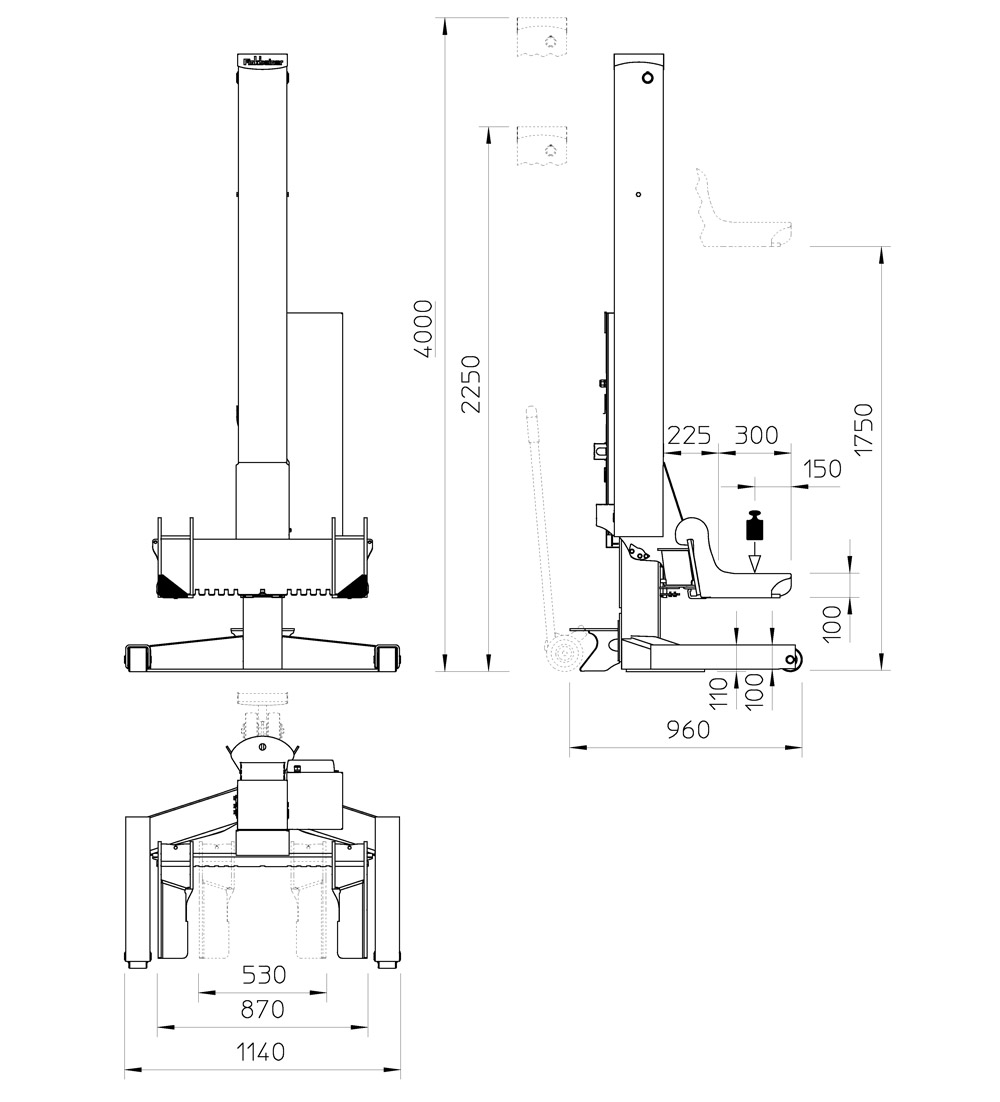

Column hoist EHB1005 diagram and dimensions

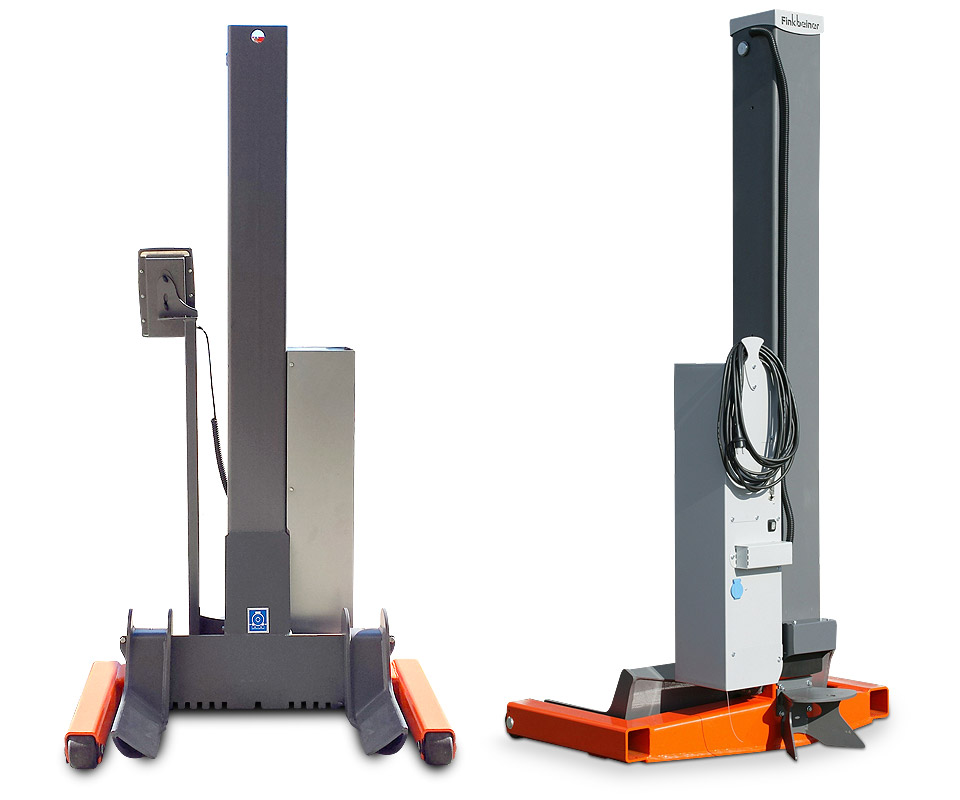

ehb1005 wireless column hoistTechnical Specifications

Model

EHB1005

Capacity per column

5,5 t

Load support

wheel fork, adjustable

Tyre size

Ø 550-1140 mm

Fork length

300 mm

Support height

100 mm

Lifting height

1850 mm

Stroke

1750 mm

Lifting time loaded

70 sec

Lowering time loaded

70 sec

Lift cycles fully loaded

8

Synchronisation system

electronic

Mode of drive

electro-hydraulic

Type of power supply

battery powered

Motor power per column

2,2 kW

Battery capacity (nominal charge)

50 Ah

Battery voltage (DC)

24 V

Charging voltage

230 V

Control voltage

24 V DC

Power supply frequency

50 / 60 Hz

Amperage per column

2,5 A

Control

electronic

Communication of columns

wireless, radio controlled

Synchronisation of columns

smooth, without increments

Load safety device

hydraulic and mechanical

Control

central, on each column

Control modes

all / pair / single

Front travelling device

2 wheels, Ø 100 mm

Type of front travelling device

fixed

Rear travelling device

1 wheel, Ø 160 mm

Type of rear travelling device

mechanical, spring-loaded, self-lowering

Front ground clearance

10 mm

Rear ground clearance

15 mm

Entry height

110 mm

Protection class

IP 54

Colour

orange / grey

Column Dimensions

960mm (l) x 1140mm (w) x 2255mm (h)

Weight per column

400kg

Servicing & maintenance

With our extensive facilities and wide expertise, Hartex can provide programmed and event based maintenance that includes on-site support, servicing and parts replacement. Insist on Hartex Services to provide and maintain all of your heavy vehicle engineering solutions.

Delivery & Installation

We export, deliver and install both locally throughout Australia and to all global markets. We have custom compliance packages to suit design standards and rules for Australia, USA, Japan and Europe.
