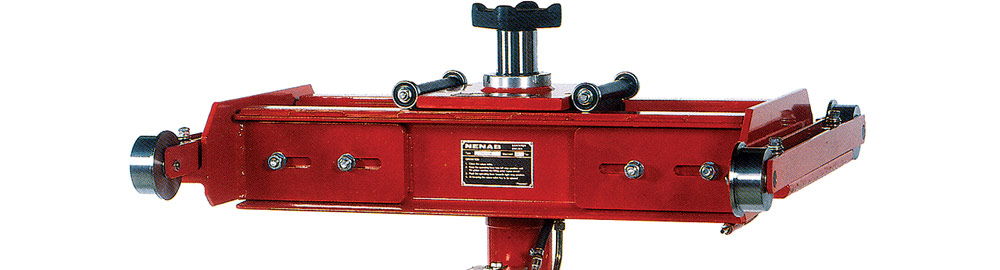

rms hydraulic pit lifter

This type of Pit Lifter is manufactured in 3 different sizes. All types are characterised by high quality, reliability of service and low air consumption. With a hard chromium plated and polishe

d lifting piston NENAB Hydraulic Pit Lifters can be obtained with piston extensions for lifts up to 900mm.

The air driven hydraulic pump (The LHP 100) gives a high waulaity performance and reliability of service. The double-acting design creates high efficiency and ensures low air consumption.

Download Brochure

Hartex Heavy Vehicle Jacking Systems

RMS Hydraulic Pit Lifter Features:

  • Hand Valve - with 3 modes of operation, Neutral, Fast and Lifting mode. When released the value automatically returns to neutral mode (dead man's handle)

  • Travelling Carriages - these are manufactured for all types of inspection pits

  • Safety Valve (8 bar) prevents overloading

Nogra Hydraulic Pit Lifter Foundation PlansNogra Hydraulic Pit Lifter Foundation Plans

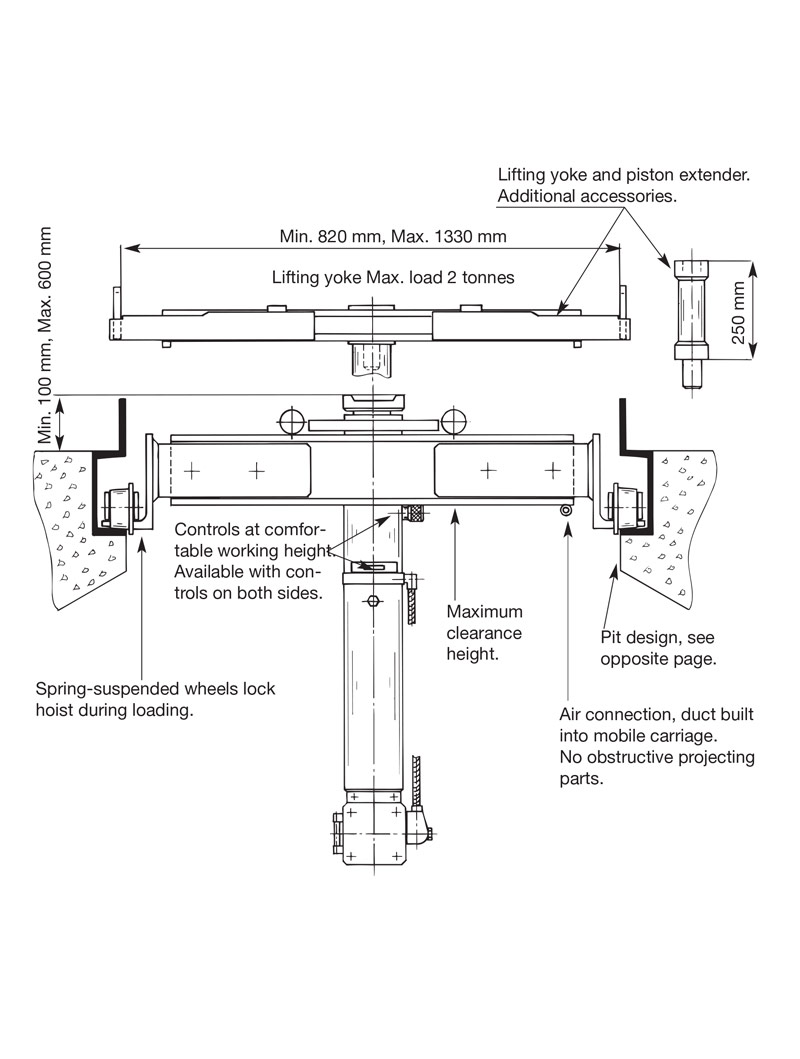

Diagram shows lifting position, guides and valvesDiagram shows lifting position, guides and valves

NENAB airdriven hydraulic pump, type LHP-100NENAB airdriven hydraulic pump, type LHP-100

Technical Specifications

Model

GL-810

GL-815

GL-820

Capacity at 8 bar:

10T

15T

20T

Min height above floor

100mm

100mm

100m

Hoisting motion

500mm

500mm

500m

Lifting time

abt 30 sec

abt 40 sec

abt 50 sec
