full rise scissor lifts

Hartex provides a huge range of stationery Heavy Duty Full Scissor Lifts for Trucks, Buses and other large commercial vehicles.

Our range offers a variety of lifting capacities, these include:

  • Single scissors: 901/911 (13 tonne), 902/912 (23 tonne), 903/913 (33 tonne)
  • Double scissors: 906/916 (26 tonne), 907/917 (46 tonne), 908/918 (60 tonne)

Safety features include:

  • Safety valve to prevent overloads
  • Safety valve on each cylinder against damage or breakage of pipes
  • Safety photocell for the position of the two platforms

Recent Projects include:

  • Sita Environmental, Bendigo VIC
  • Sita Environmental, Taralgon VIC
  • Sita Environmental, Ballarat VIC

full rise scissor lift features:

  • Electro-hydraulic operation
  • "Man standing-by" controls (Auxiliary tension 24V)
  • Sound device and two-hand control during the last descent phase
  • Check through valve adjusting the descent speed
  • Electronic device for the check and constant keeping of the parallelism of the two platforms independently from the load distribution
  • Special device for the check and the execution of the standing of the two platforms
  • CE approved with electromagnetic compatibility
  • All the models are approved to allow the reversibility of load

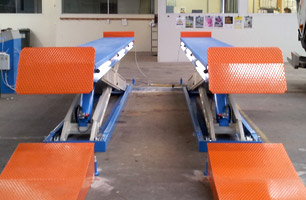

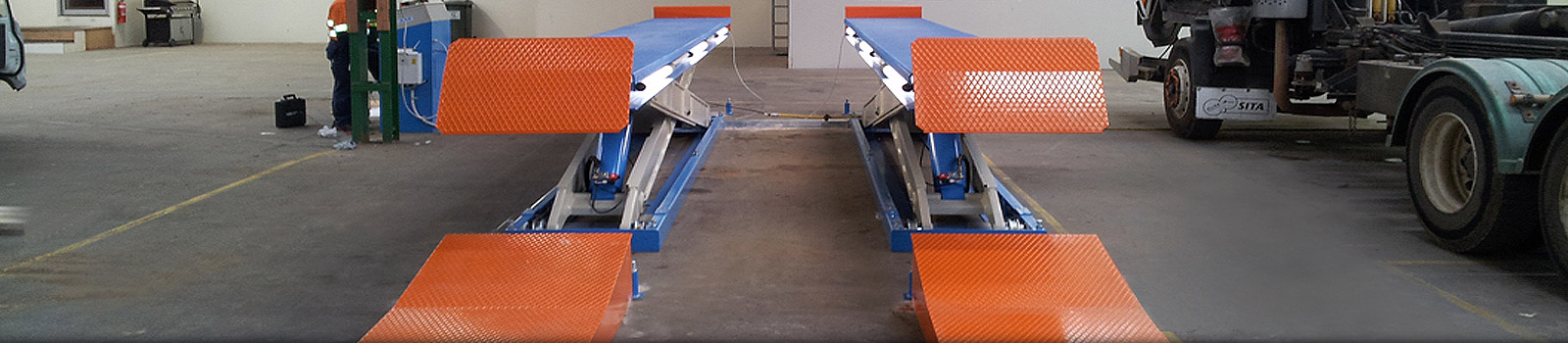

Scissor Lift in halfway position installed at SITA Environmental VICScissor Lift in halfway position installed at SITA Environmental VIC

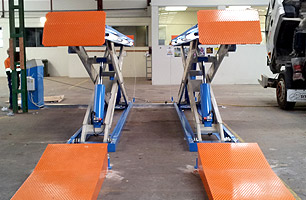

Scissor Lift in full rise position installed at SITA Environmental VICScissor Lift in full rise position installed at SITA Environmental VIC

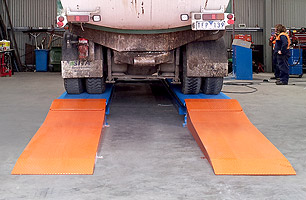

SITA Environmental truck on scissor lift before it begins being liftedSITA Environmental truck on scissor lift before it begins being lifted

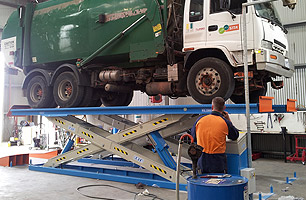

SITA Environmental truck on scissor lift in full rise position ready to be worked onSITA Environmental truck on scissor lift in full rise position ready to be worked on

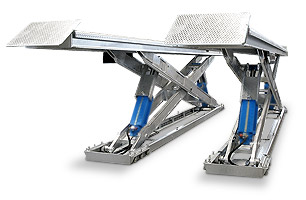

Galvanised version suitable for heavy vehicle washbay applicationsGalvanised version suitable for heavy vehicle washbay applications

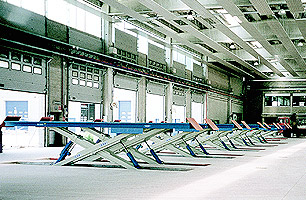

Truck Workshop fit out with multiple scissor lifts installedTruck Workshop fit out with multiple scissor lifts installed

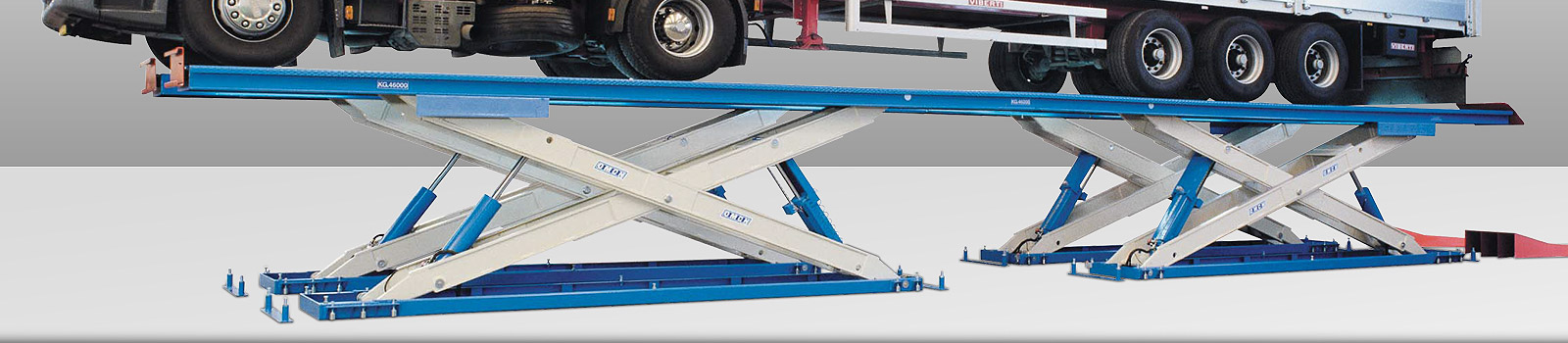

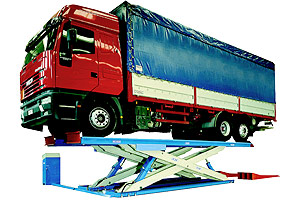

Electrohydraulic scissor hoists for heavy vehicles Electrohydraulic scissor hoists for heavy vehicles

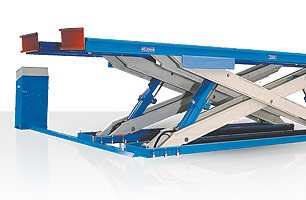

Disapearing modelDisapearing model

Electro-hydraulic operatingElectro-hydraulic operating

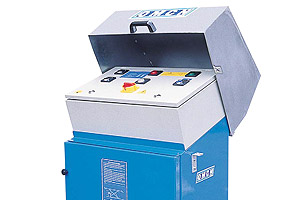

Supplement for tin-control centralSupplement for tin-control central

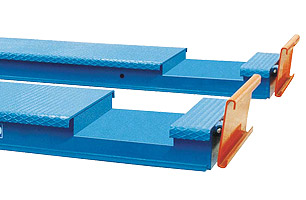

Cavity on footboards for housing of play-testing deviceCavity on footboards for housing of play-testing device

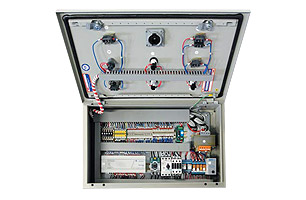

Electric Control BoardElectric Control Board

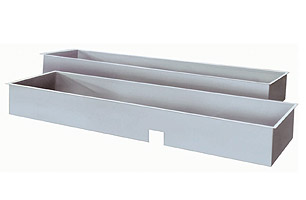

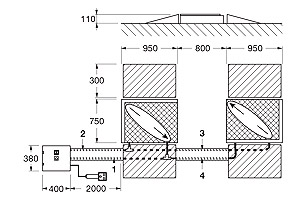

Frame for the disappearing versionFrame for the disappearing version

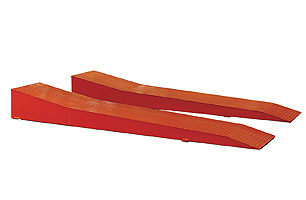

Up and down kit - front sideUp and down kit - front side

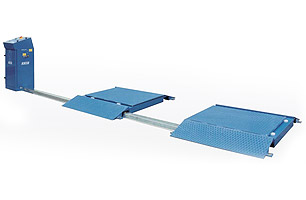

Hydraulic play-detector device for cars, heavy and commercial vehicles, floored model Hydraulic play-detector device for cars, heavy and commercial vehicles, floored model

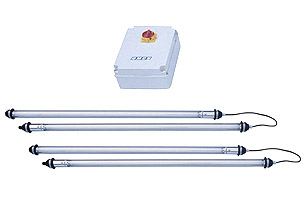

Lighting system with 4 fluorescent lamps (24 Volts)Lighting system with 4 fluorescent lamps (24 Volts)

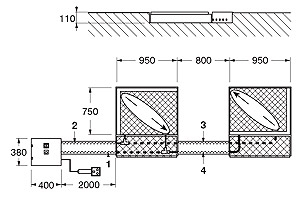

Hydraulic play-detector device for cars, heavy and commercial vehicles, disappearing modelHydraulic play-detector device for cars, heavy and commercial vehicles, disappearing model

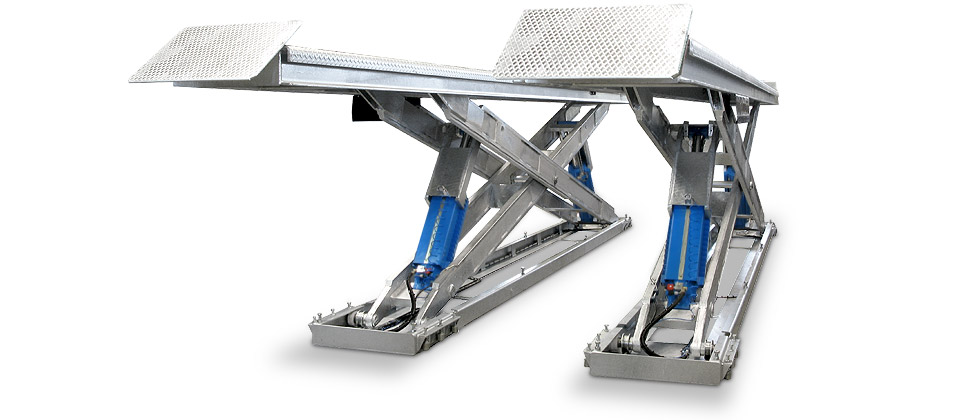

Full rise scissor lift for heavy and commercial vehicles, floored model

Technical Specifications

Model

900

910

901

Lifting Capacity

9T

9T

13T

Motor Power

5.5KW

5.5KW

7.5KW

Weight

4,850Kg

4,250Kg

5,600Kg

Model

911

902

912

Lifting Capacity

13T

23T

23T

Motor Power

8.8KW

15KW

15KW

Weight

5,000Kg

7,950Kg

7,350Kg

Model

903

913

Lifting Capacity

33T

33T

Motor Power

8.8KW

15KW

Weight

10,600Kg

10,000Kg

Full rise scissor lift for heavy and commercial vehicles, disapearing model

Model

906

907

908

Lifting Capacity

26T

46T

60T

Motor Power

2x 7.5KW

2x 8.8KW

2x 15KW

Weight

10,600Kg

15,300Kg

20,600Kg

Model

916

917

918

Lifting Capacity

26T

46T

60T

Motor Power

2x 7.5KW

2x 8.8KW

2x 15KW

Weight

10,000Kg

47,000Kg

20,000Kg
