oil & grease dispensers

Graco's new family of meters and dispense valves fit a wide range of needs from small repair shops to car dealerships, truck, fleet and off-road maintenance facilities.

LDM5 Manual Dispense Meter

Lighter duty applications - small maintenance shops, tire/muffler shops, fast-lubes, independent repair facilities, and lower volume in-plant applications.

There are 2 models to choose from:

  • LDM5 with inlet boot, trigger guard and rigid extension with thermal compensating nozzle
  • LDM5 with flexible extension and automatic nozzle

SDP5 Preset Dispense Electronic Meter

Standard and heavier duty applications - car / truck dealerships, fleets, mining, off-road, public works garages,
construction, and higher volume in-plant applications.

Recent Projects

Project Name / Short Description

SD Series Dispenser Meter Features:

  • LCD Display & Simple Operator Controls
  • Durable Cast Body
  • Fluid Inlet Screen
  • Fluid Swivel
  • Fluid Inlet Boots
  • Balanced Triggering & Trigger Lock
  • Fluid Extension Kits
  • Long Battery Life

LD Series Dispenser Meter Features:

  • Fluid Inlet Screen
  • Trigger Guard & Boot
  • Fluid Inlet Boots
  • Fluid Extension Kits

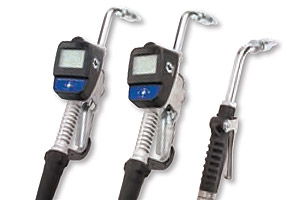

SDP5 Preset Dispense Electronic MeterSDP5 Preset Dispense Electronic Meter

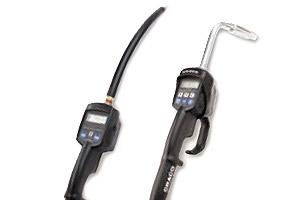

LDM5 Manual Dispense MeterLDM5 Manual Dispense Meter

Dispenser Nozzel close upDispenser Nozzel close up

Lubrication dispensers installed in suspended ceiling pit with waste oil buckets to keep the pit extra cleanLubrication dispensers installed in suspended ceiling pit with waste oil buckets to keep the pit extra clean

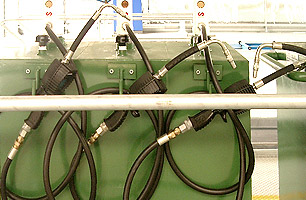

Lubrication dispensers in Suspended ceiling pit with hooks attached to custom made lubrication tanksLubrication dispensers in Suspended ceiling pit with hooks attached to custom made lubrication tanks

Lubrication dispensers installed in truck workshop with above ground gantryLubrication dispensers installed in truck workshop with above ground gantry

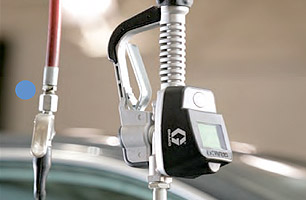

Close up of dispenser shoing connection to high pressure lines, trigger and meter reading screenClose up of dispenser shoing connection to high pressure lines, trigger and meter reading screen

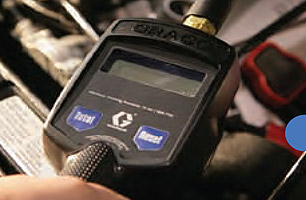

Close up of meter reading screenClose up of meter reading screen

Technical Specifications

MODEL

SD

LD

Max Working Pressure

1500 psi (103 bar) maximum working pressure

1000 psi (69 bar) maximum working pressure

Flow Rate

Up to 14 gpm (53.0 lpm)

Up to 5 gpm (18.9 lpm)

Use

Indoor and outdoor use

Indoor use only

Nozzle

Automatic nozzle with twist-lock. Optional high volume nozzle

Automatic nozzle only

Flow Control

Variable flow control

On/off fluid control
