kerb angle pre-fabricated steel workshop Pits

The Galvanized Kerb Angle steel works to accommodate the Hartex Jacking system. The steel frame is designed to take the loads imposed by heavy vehicle jacking systems and prevents fatigue and cracking of the concrete pit walls.

This option is ideal for clients with close links to the building industry and are confident in building a concrete pit but would still like the option of incorporating a heavy vehicle jacking system into their new service pit.

The Kerb angle super structure is designed to withstand the stresses placed by modern heavy vehicle jacking systems without which a traditional concrete pit edge will crack and fatigue over time.

The Kerb Angle is a registered Hartex Engineering Design and is fabricated in our purpose built manufacturing facility in Sydney. The steel work is then transported to the site where it is assembled, levelledand concreted in.

  • Number and Length of bays to suit your needs
  • Bay centre can be designed to your needs
  • Two sets of access stairs and handrails, one set for each end fitted between bays
  • Fitted with a Heavy Vehicle Jacking System
  • Lubrication equipment - above or inside pit
  • Lighting & Ventilation systems
  • Priming or hot dip galvanised finish
  • Quick installation, minimising downtime

The Galvanized Kerb Angle steel works to support the Hartex Jacking system

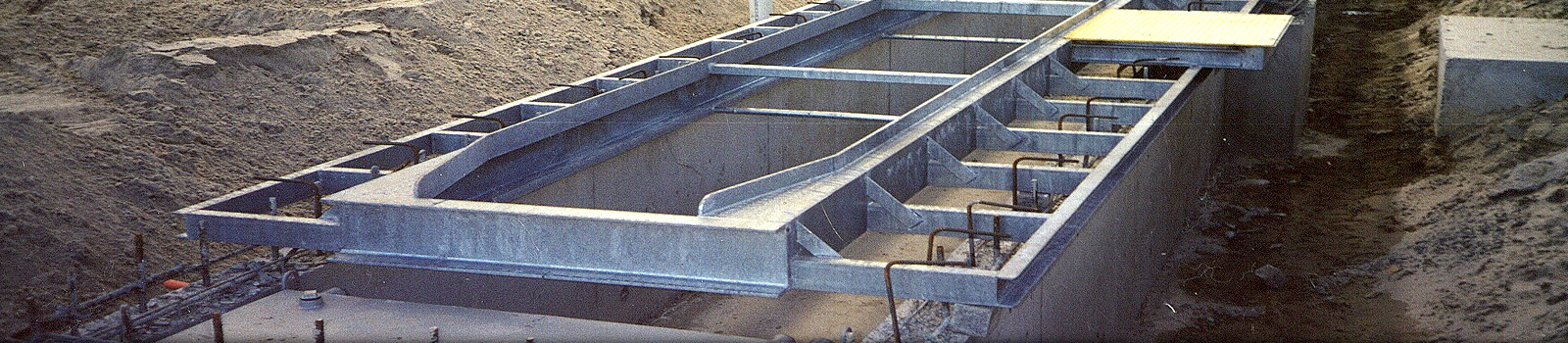

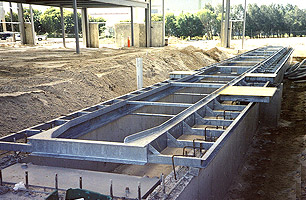

The steel work is transported to the site where it is assembled and levelled before being concreted in

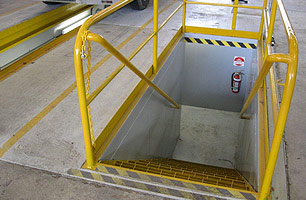

The Kerb Angle Pit bay centre can be designed to your individual needsThe Kerb Angle Pit bay centre can be designed to your individual needs

Side access tunnels for safe access to shorter truck service pitsSide access tunnels for safe access to shorter truck service pits

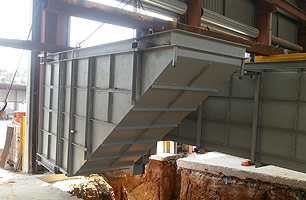

Prefabricated service pit staircase with tunnel being installedPrefabricated service pit staircase with tunnel being installed

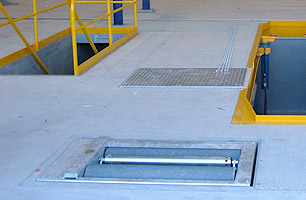

External view of prefabricated service pit with staircase and tunnelExternal view of prefabricated service pit with staircase and tunnel

  • Workshop Pit Lighting class 1 zone 2
  • Service Pit Ventilation
  • Truck & Bus Lubrication systems - Engine Oil, Differential Oil, Hydraulic Oil, Coolant Oil, Greases etc.

Hartex drop in pit systems can also be designed with side access tunnels. Many truck service pits and bus service pits are too short for the types of vehicles being serviced on them. It is mandatory under the OH&S act to have a clear path of entry and exit for a mechanic working in a pit in the event they are injured or a rescue is to be mounted due to other emergencies like smoke or fire events.

If the service pit is shorter than the fleet being serviced, it is possible to meet the obligations under the act by incorporating a side access tunnel into the service pit to allow mechanics access into the service pit at any time, even if a truck or bus covers the entire pit opening. This is quite common on many NSW Roads and Maritime Services (RMS) inspection pits.

Technical Specifications

Pit Opening

950mm

Pit Width

1400mm - 1600mm

Pit Depth

1400mm - 1600mm

Bay Centre

4.5m and above

Heavy Vehicle Workshop Pits

RMS Inspection Service Pits

Hartex Workshop Pit Safety

All of our workshop pits and service bays come with a 25 year structural warranty, making Hartex pits the most durable long lasting pits in the world

We export to all global markets and have custom compliance packages to suit design standards and rules for USA, Japan and Europe, the Middle East, Indonesia & Malaysia.
