special vehicle column lift - EHB715

This style of lift is for special heavy duty vehicles, commonly used for mining and resources vehicles.

Safety Features

  • Double load securing by hydraulic and mechanical locks
  • Pressure relief valve preventing overload
  • Emergency stop at each column

Recent Projects

Project Name / description

Download Brochure

Insert brochure link

Special Vehicle Lift EHB715 Features:

  • Mobile and universal use, indoors and outdoors.
  • Practical and easy maneuverability of every column
  • Short set-up time and fast lifting speed
  • Maximum safety utilizing double load securing at any lifting height
  • Reliable hydraulic drive, self-lubricating, totally insensitive to moisture, dirt and sand
  • Minimum maintenance required

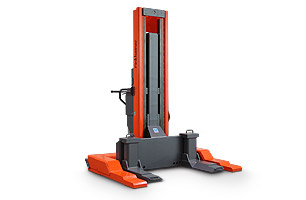

Single Column Lift showing front of unit

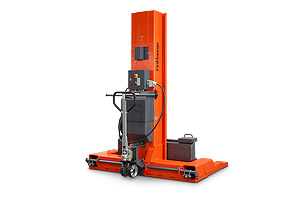

Single Column Lift showing back of unit

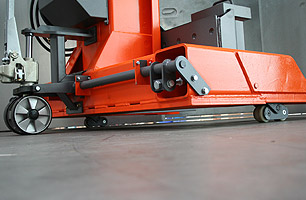

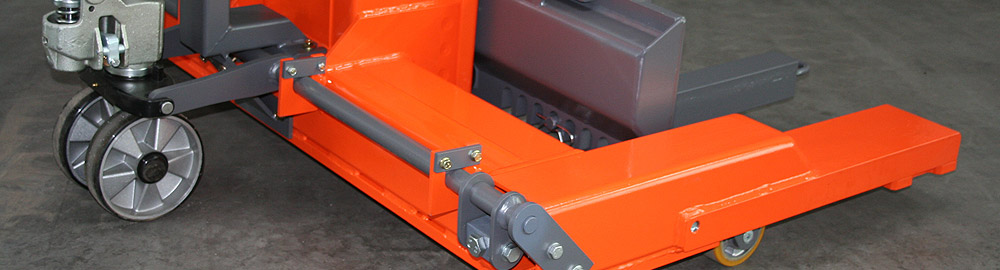

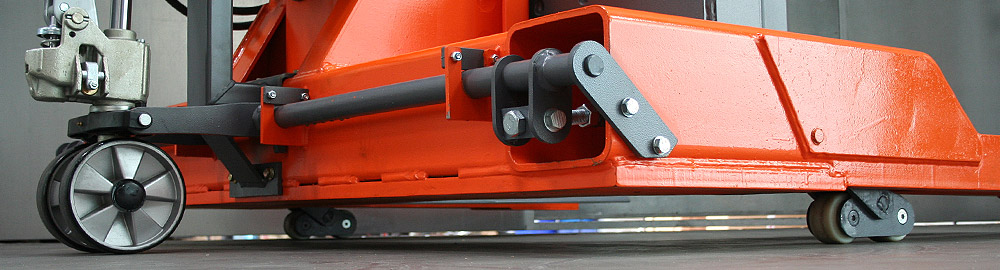

Column lift wheel fork showing back and wheels

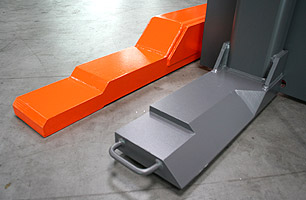

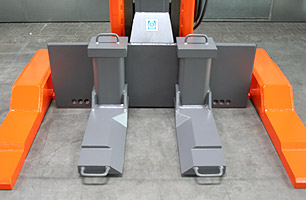

Adjustable wheel fork (open)

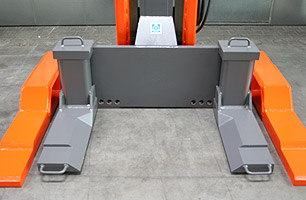

Adjustable wheel fork (closed)

Image description....

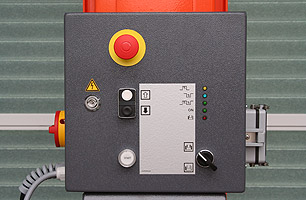

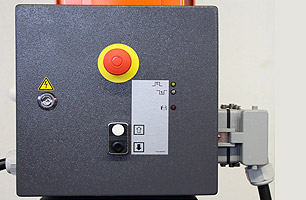

Master control box with operation elements

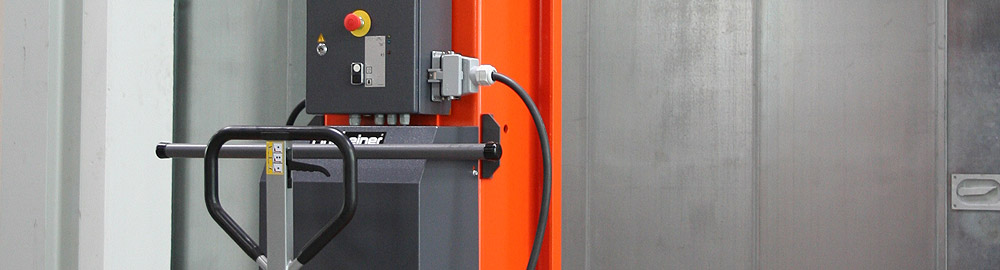

Slave control box with operation elements

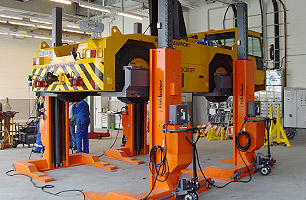

Mobile column lift showing an aircraft tow tractor

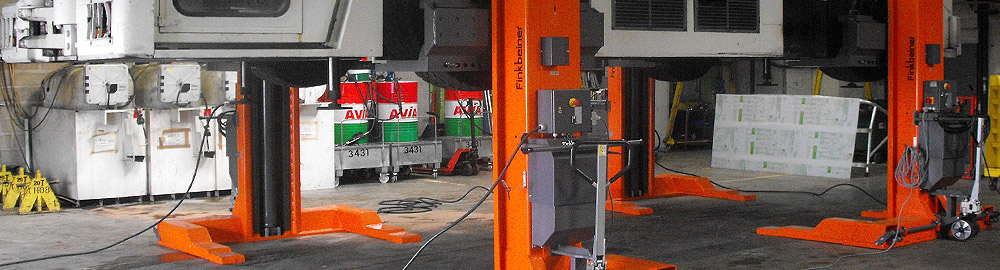

Mobile column lift showing an aircraft tow tractor

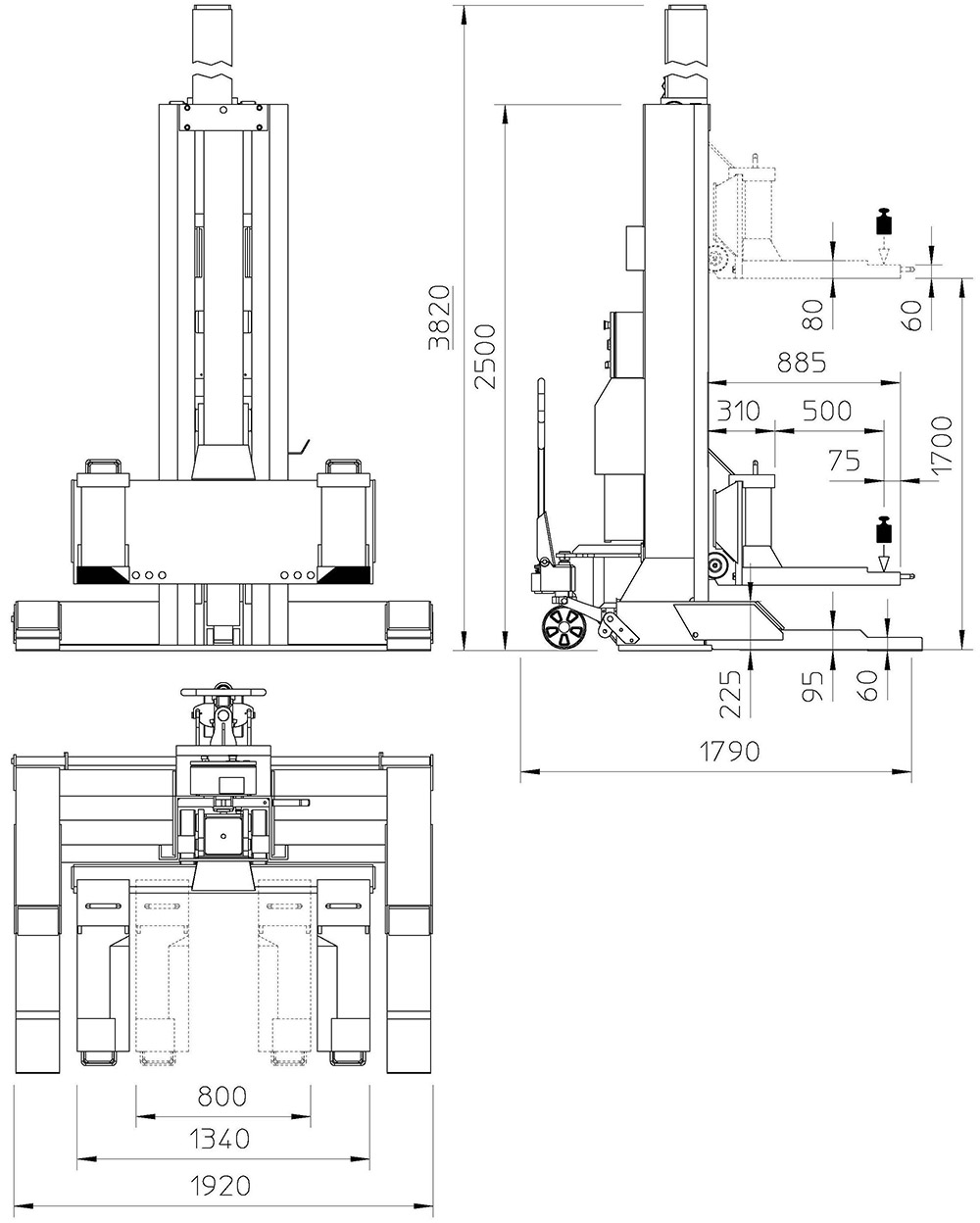

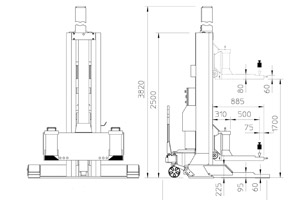

Column specifications, click to enlarge image

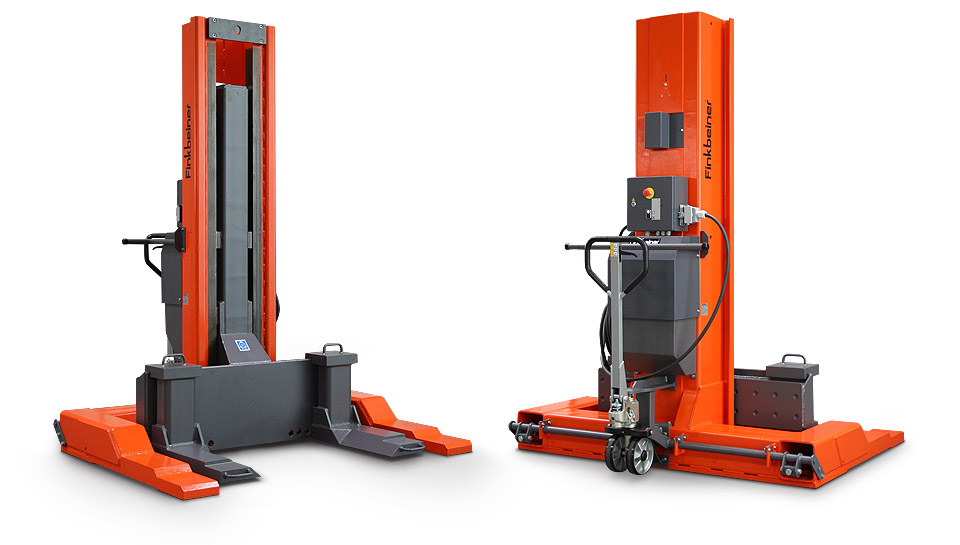

ehb715 mining andn special vehicles column hoist

Technical Specifications

MODEL

EHB715

Capacity

60 Tonne (1 master, 3 slave columns)

Load Support

Adjustable forks for wheels 155R13-25.5R25, Ø 550 - 1800 mm

Lifting Stroke

1700mm

Speed

Up 160 sec., Down 110 sec (approx)

Operation

Up / Down from each column (all / single)

Control

Synchronization of columns, increment control, height tolerance of max. 3 mm

Control Voltage

24V DC

Drive

Electro-hydraulic. Hydraulic cylinder self-lubricating, cylinder rod encased by steel tube

Motor

2.2KW per column

Connection

400 V / 3 Ph / 50 Hz, fuse 35 A

Positioning Wheels

Hydraulic pallet jack for front and at rear wheels, Ground clearance 100mm, all wheels with sealed roller bearings

Dimensions

1675mm (l) x 1920mm (w) x 2500mm (h) per column. Front leg height of 225mm

Weight

1800kg per column

Protection class

IP65

Safety standards

CE, EN 1493
