automatic truck wash machine - progress 4hwp

The PROGRESS truck and bus wash machine is available in 4 different heights, 2 widths and flexible bay length, to adapt to the specific needs of your fleet. Vehicle types include; vans, trucks, trailers, buses, coaches and special vehicles such as tankers or public services.

With a hot-dip galvanised structure, its vertical brushes apply an overlapping front and rear scrub; it also offers great program flexibility depending on the type of fleet and number of vehicles being washed per day.

The Progress 4HWP Truck Wash includes several wash programs specifically designed for heavy vehicles with panoramic mirrors.

Optional Extras

  • horizontal brush wash
  • high pressure touchless wash

Recent Projects

  • Toll, Bungaribee NSW

Download Brochure

Heavy Vehicle Washing Systems

Progress 4HWP Truck wash features:

  • A robust cube-shaped structure in hot-dip galvanised steel
  • Self-propelled vertical brushes with a overlapping function
  • Frontal overlapping which can be enabled or disabled on each program selection
  • Frontal tilt vertical brushes (optional)
  • Flexible program and functions configuration chosen by the customer
  • Command post with backlit screen and buttons to configure the units and programs
  • as well as to view functions and messages easily and clearly
  • Drive controlled by frequency converter
  • Special function for washing vehicles with panoramic mirrors

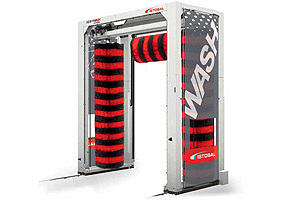

HW Progress Rollover Truck Wash MachineTruck Wash Machine - Progress 4HWP

Hartex Washbay showing Truck Wash at Border Express depotHartex Washbay showing Truck Wash at Border Express depot

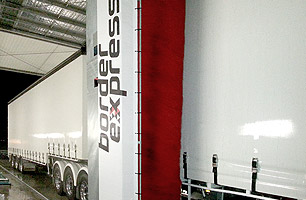

Hartex Washbay showing Truck Wash at Border Express depPorgress Bus & Truck wash machine installed at Border Express depot

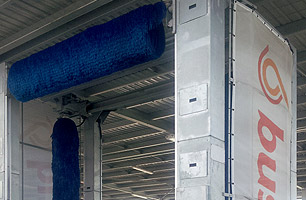

Wash System installed at Busways Penrith depotTruck & Bus wash machine installed at Busways Penrith depot

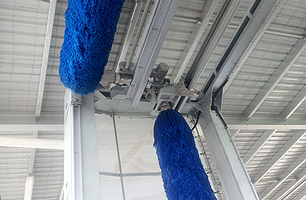

Wash System installed at Busways Penrith depot showing top & side rollersBus wash machine at Busways Penrith depot showing top & side rollover brushes

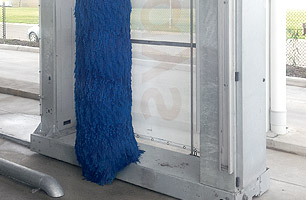

Wash System installed at Busways Penrith depot showing side roller and guide railsSide view of Busways Penrith wash machine showing side roller brush and washbay guide rails

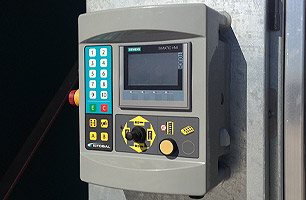

Progress wash machine installed at TOLL IPEC showing master control panelProgress truck wash machine installed at TOLL IPEC workshop facility showing master control panel

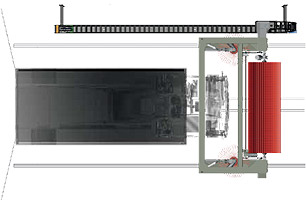

Diagram of Progress 4HWP Wash machineDiagram of Progress Truck Wash machine from top down view

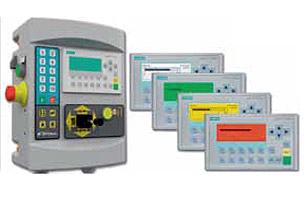

Colour screen options for control box, with easy access to program selection, allows custom control via joystickThe progress truck wash machine comes with colour screen options forthe control box, with easy access to program selection and allows control via a joystick

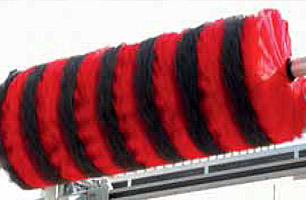

Optional horizontal brushOptional horizontal brush can be added for an extra thorough clean for taller, wider vehicles

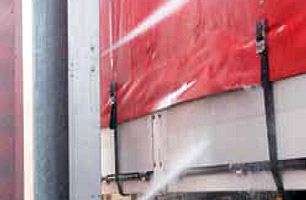

High press side wash, ocisallating via variable speed drive (40 nozzles)High press side wash, ocisallating via variable speed drive (40 nozzles)

Technical Specifications

KUBE & PROGRESS Truck Wash

All measurements are in mm

Wash Height*

3.600 / 3.900

3.730 / 4.000

4.230 / 4.500

4.730 / 5.000

Wash Width

2.830

2.830

2.830

2.830

Length of Rails

24.000

24.000

24.000

24.000

Machine width

4.470 / 4.780

4.640 / 4.900

5.140 / 5.400

5.640 / 5.900

Machine width

4.715

4.715

4.715

4.715

* With brushes 1.000mm

** Standard length 24m. Modules can be added.

Power supply to machines: 3 x 400 V + N + PE (50 Hz)

Power of machines: Base Unit 4.8 kW - Horizontal Brush 1.5 kW
