Truck & Bus > wash Machines > Truck Wash KUBE

truck WASH machine - kube 4HWK

The KUBE bus & truck wash machine offers maximum versatility with 4 different heights to adapt to the specific needs of the retail location or private fleet: vans, trucks, trailers, buses, coaches and special vehicles such as tankers or public services vehicles.

The KUBE truck wash machine can also be fitted with all the brush materials of our link-it® system: link-feel, link-foam and link-tex. It is possible to choose between different options which have been developed to improve the wash result: high pressure, chemical pre-wash and underchassis.

Optional Extras

  • Horizontal brush
  • High pressure touchless wash

Download Brochure

Heavy Vehicle Washing Systems

HW KUBE Rollover Wash features:

  • A robust cube-shaped structure in hot-dip galvanised steel
  • Extremely reliable vertical brushes with pneumatic control and double shock absorption
  • Drive controlled by frequency converter
  • Command post with backlit screen and buttons to configure the units and programs as well as to view functions and messages easily and clearly
  • Program selection from command post
  • Program selection by configuration and type of vehicle or pre-set by the operator
  • Special function for washing vehicles with panoramic mirrors

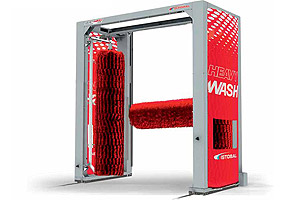

Truck Wash - KUBE for trucks & buses

Truck Wash Kube - Rollover Wash Machine for trucks & buses

Truck Wash - KUBE for trucks & buses

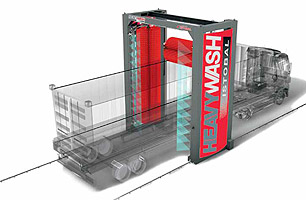

Diagram showing Kube truck wash system

Truck Wash - KUBE for trucks & buses

Kube Truck Wash showing truck exiting from wash bay on wash cycle completion

Truck Wash - KUBE for trucks & buses

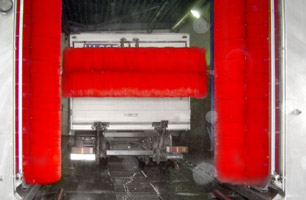

Truck moving through the wash cycle stages of the Kube truck wash machine

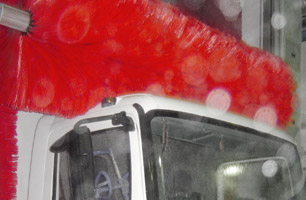

Optional horizontal brush

Optional horizontal brush can be added for taller vehicles to get an extra clean result

Technical Specifications

KUBE & PROGRESS

All measurements are in mm

Wash Height*

3.600 / 3.900

3.730 / 4.000

4.230 / 4.500

4.730 / 5.000

Wash Width

2.830

2.830

2.830

2.830

Length of Rails

24.000

24.000

24.000

24.000

Machine width

4.470 / 4.780

4.640 / 4.900

5.140 / 5.400

5.640 / 5.900

Machine width

4.715

4.715

4.715

4.715

* With brushes 1.000mm

** Standard length 24m. Modules can be added.

Power supply to machines: 3 x 400 V + N + PE (50 Hz)

Power of machines: Base Unit 4.8 kW - Horizontal Brush 1.5 kW
