forcelift hydraulic mobile Column lift

The ultimate mobile column lift for trucks and buses, the Forcelift mobile column lift provides safe and accurate real time control.

With new technology, the SCM control system ensures the lifts synchronization ensuring ultimate stability during the lifting process.

Lasting solution

  • ISO 9001 Approved
  • AS/ANZ 1418.9 Approved
  • TUEV & CE(EN1493) Approved

Download brochure

Heavy Vehicle Hoists

Forcelift Column Hoist features:

  • Each column is equipped with it's own control system, applies to four, or six, or eight columns per set.
  • A switch on the master control box for single, double, four or all columns operation
  • The hydraulic electric system provides safe and accurate real time control
  • Double safety system: mechanical lock and hydraulic check valve
  • Adjustable wheel supports
  • Mobile and flexible, the system can be used indoor or outdoor.
  • Waterproof design for use in commercial wash bays
  • Requires only a flat, stable floor and a power source

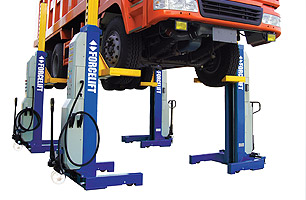

Mobile Column HoistMobile Column Hoist

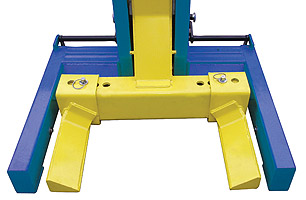

Adjustable Wheel ForksAdjustable Wheel Forks

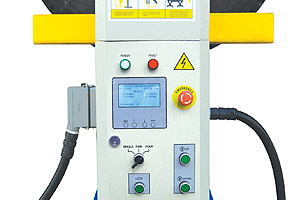

Master control box for single, double, or all operationMaster control box for single, double, or all operation

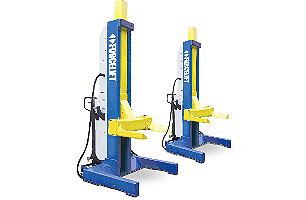

Requires only a flat, stable floor and a power source

Requires only a flat, stable floor and a power source

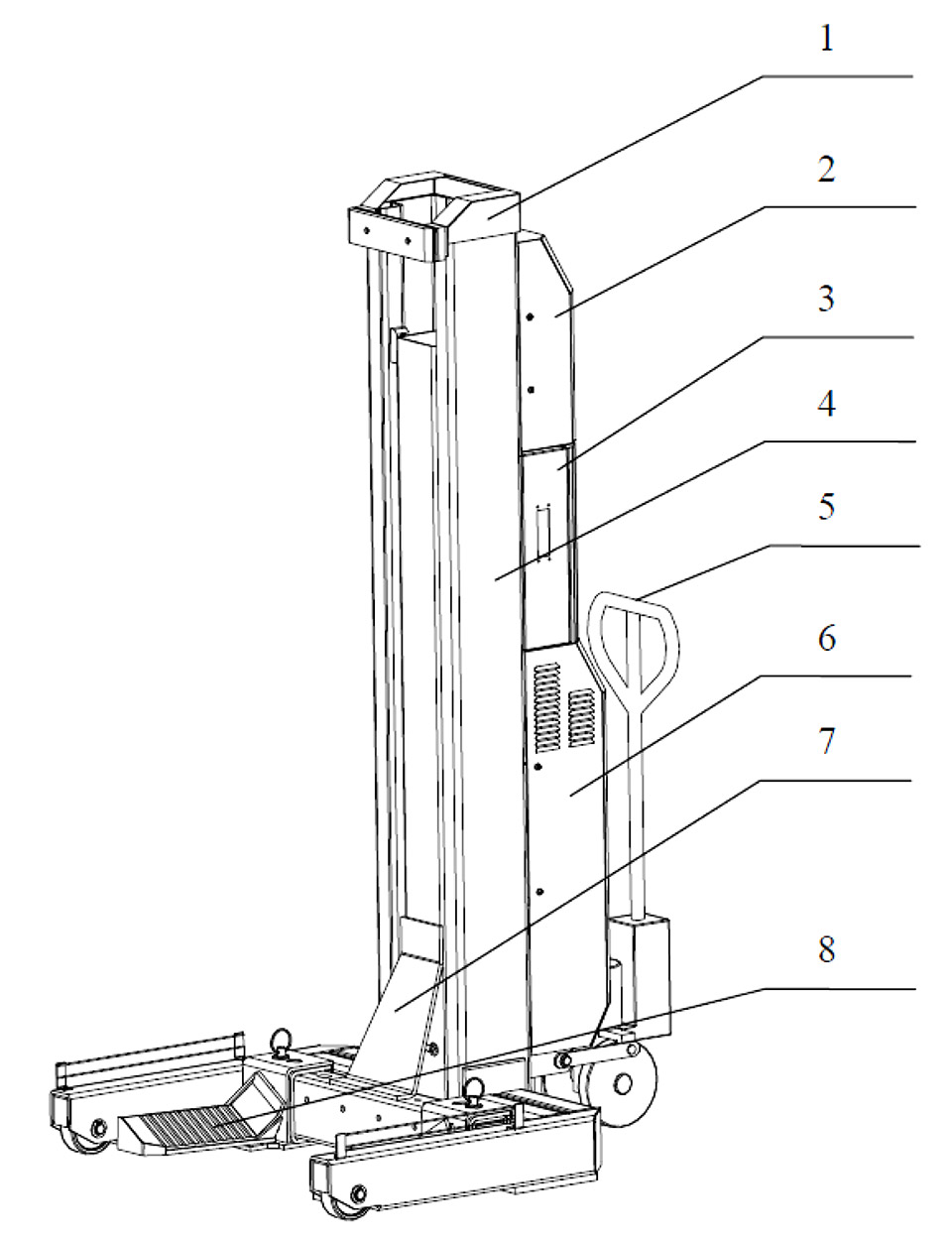

Features Diagram, click to enlarge

Features Diagram, click to enlarge



Technical Specifications

Model

Forcelift Column Lift

Lifting Capacity

5500kgs per column

Wheel Fork

ø 280 – 580mm

Max Lifting Height

1700mm

Lifting / Lowering Time

120s (up) / 100 (down)

Drive

Electro-hydraulic

Power Supply

208V, 60Hz 380V/400V/415V, 50Hz

Motor Power

2.2kW per column

Weight

580kgs per column

Dimensions

2260mm(h) x 1100mm(w) x 1200mm(d)
