Roller brake testerS for trucks & buses

Recommended by vehicle manufacturers and used by international testing organisations in continuous operation, the MBT Series of Maha Brake Testers are the world's most commonly used brake testers and are specifcally used for truck diagnostics.

The optimised roller set dimensions make these testers versatile for both truck and car testing. These test benches can be upgraded with many accessories and offer a wide range of diagnostics options, even when vehicle volumes are high.

The display design can be either analog or a digital version with a PC and can be extended to include a test lane.

Brochure Downloads:

NVHR Roller Brake Testing Changes - Effective June 11th 2016



MBT Roller brake Tester Benefits:

  • Fully automatic testing with user guidance
  • Digital data aquisition and storage
  • Modular design
  • Patented, correct 4WD testing
  • Robus, servic-friendly technology
  • Network Ready
  • CE Certified

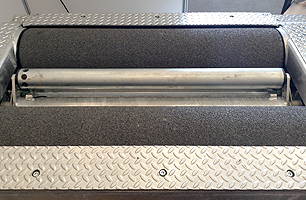

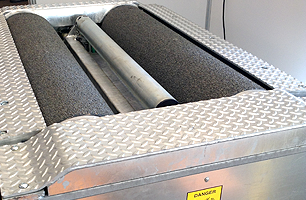

Roller brake tester added for bus workshopRoller brake tester & Suspension Tester installed in truck service pit

Roller brake tester added for bus workshopRoller brake tester & Suspension Tester installed in RMS inspection pit

Roller brake tester installed in struck service workshopRoller brake tester installed at the entry to a kerb angle prefabricated drop in service pit

Roller brake tester installed at pit entranceRoller brake tester installed at the end of workshop pit with Suspension Testers ready to be dropped in

Roller brake tester added for bus testing facilityRoller brake tester installed at the end of workshop pit with new Suspension Testers ready to be dropped in

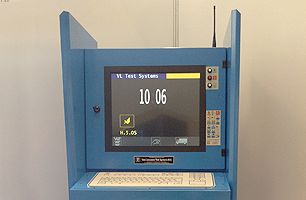

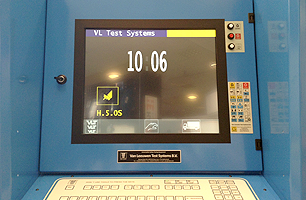

This roller brake tester was added at the end of a 3 bay suspended cieling pit servicing a large fleetRoller brake tester LCD screen display - showing home screen interface

roller brake tester showing vehicle make & model selection Roller brake tester LCD screen display - showing vehicle selection based on model and measurements

Roller brake tester showing acceleration measurementsRoller brake tester LCD screen display - showing Acceleration measurements

roller brake testing LCD displayRoller brake tester LCD screen display - showing brake force and pressure Px over time

roller brake tester showing brake fluid measurement valuesRoller brake tester LCD screen display - showing Brake fluid measurement values

roller brake tester showing brake test valuesRoller brake tester LCD screen display - showing brake test values

Additional Features include:

  • Automatic start-up monitoring
  • Delayed automatic switch-on after entering the tester
  • Automatic cutoff at selected slip with pointer stop and automatic restart
  • Automatic switch-off after exiting the tester
  • Single wheel switchover
  • Electronic DMS measuring system
  • Self-supporting split roller set
  • Rear roller banked by 50 mm
  • Plastic coated on request
  • Star-delta switching
  • Splash-proof motors
  • TUV and GS approved
  • Lockable main switch
  • Powder coating, blue RAL 5010

Standard Delivery: MBT 7250

  • Communication desk MCD 2000 with integrated switching and electro-cabinet
  • Roller set MBT 7000 RS 2, with motor underneath the rollers with preparation for weighing device

Standard Delivery: MBT 5250

  • Communication desk MCD 2000 with integrated switching and electro-cabinet
  • Industrial-PC 'All-in-One' with metal casing and integrated 22" TFT monitor, including DVD writer, mouse, keyboard, printer
  • Roller set MBT 5000 above floor version with preparation for weighing device

Standard Delivery: MBT 5250

foundation plan for roller brake testers

Technical Specifications - roller brake tester

Display / control
EUROSYSTEM/EUROSYSTEM 4WD

Display unit

PC monitor and/or radio touch screen FTS 2010

Control

Fully automatic thanks to the MCD communication desk

Display area

0 – 40 kN / 0.02 – 0.3 D, 0 – 100% / -20 m/km – +20 m/km

Display unit dimensions (H x D x W)

860 x 1230 x 350 mm (without printer compartment)

Weight

approximately 100 – 120 kg

Interface connector

Ethernet network

Roller Set
MBT 7250
MBT 5250

Authorized axle load (minimum height)

18 t/20 t*

18 t/20 t*

Drive power of motors

2 x 11 kW/16 kW*

2 x 11 kW/16 kW*

Test speed

3 km/h (3 / 6 km/h)*

3 km/h (3 / 6 km/h)*

Roller length

1150mm (1600 mm)*

1150mm (1600 mm)*

Roller diameter

265mm

265mm

Roller center distance

475mm

475mm

Electrical connection value

3 x 400V/N/PE 50/60 Hz

3 x 400V/N/PE 50/60 Hz

Fuse protection

63 – 80 A inert

63 – 80 A inert

Bearing

watertight, maintenance-free

watertight, maintenance-free

Corrosion protection

thanks to powder coating, paint: RAL 5010 or hot dip galvanized*

thanks to powder coating, paint: RAL 5010 or hot dip galvanized*

Roller set dimensions (H x D x W)

700 x 1150 x 1450 mm

700 x 1150 x 1450 mm

Weight (2 parts)

approximately 1700 kg

approximately 1700 kg
