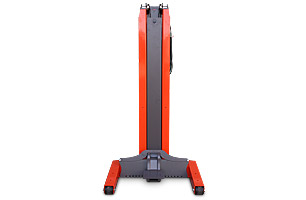

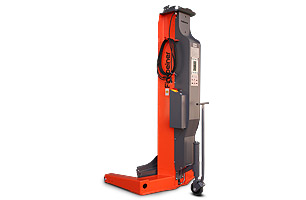

rail mobile column lift ehb907/908kdc

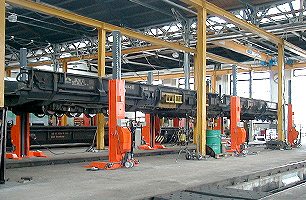

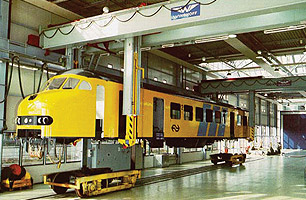

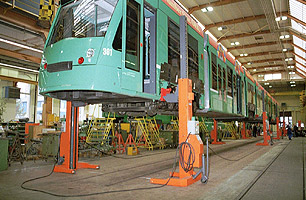

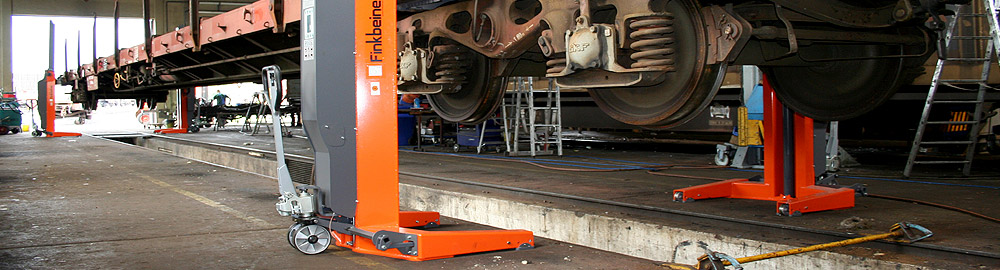

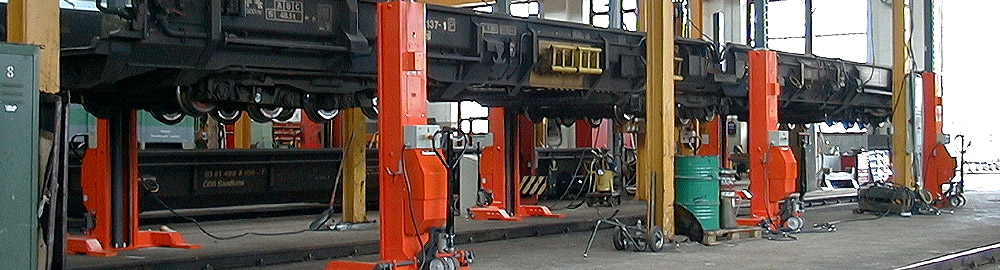

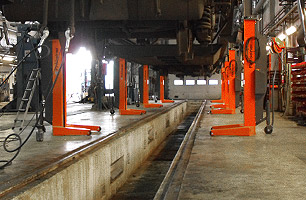

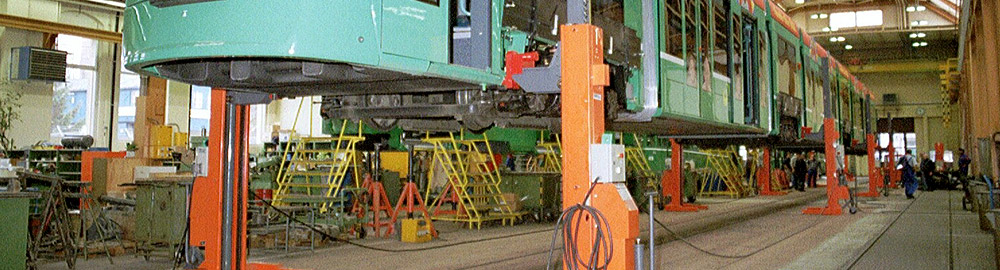

Mobile column lift for light railway vehicles, 7.5 / 8.2 t per column, fully wireless by battery drive and radio communication, load support by fixed bracket to lift at the chassis, maximum 24 columns to work within one lift set.

Wireless offers both flexibility & safety

You have the ability to move these to any location within your workshop or even outside your workshop, no need to worry about connecting a power point. With the removal of column connection cables the safety of the staff provide extra peace of mind.

Rail column lift EHB907/908 features:

  • Wireless: columns are radio-controlled and battery-powered
  • User comfort with LCD display at each column, operation: all / group / single, 2 speeds
  • Easy Charge: Loading of several columns via one mains socket
  • Integrated battery charger and charging cable. Operation of up to 10 columns per lift set
  • Optional control panel to interconnect 2 lift sets (max. 20 columns).



Technical Specifications

Specification

EHB907K DC

EHB908K DC

Capacity per column

7.5 T

8.2 T

Load support

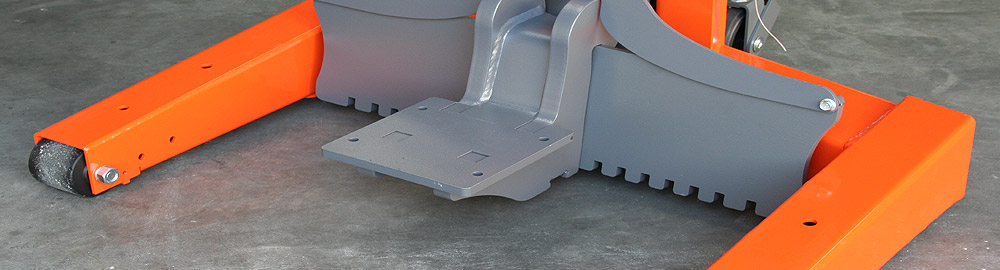

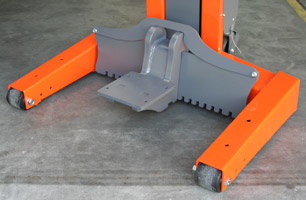

Fixed bracket, 250 x 250mm

Fixed bracket, 250 x 250mm

Support height

140mm (minimum)

140mm minimum

Lifting Stroke

1750mm (effective)

1750mm (effective)

Drive

Electro-hydraulic

Electro-hydraulic

Power source

Batteries, 24V/100 AH per column

Batteries, 24V/100 AH per column

Connection

230 VAC (for charging device)

230 VAC (for charging device)
