gas analyser - infralyt CL

The Infralyt Compact Line "Economy" simultaneously determines the CO, CO2, HC and O2 components (and the resulting fuel/air ratio) in the exhaust gas from internal combustion engines.

gas analyser infralyt CL Optional extras

It can also measure the oil temperature and RPM by means of various transducers and an optional Hand-Held unit with alphanumeric input and display can be used to operate the system and a measurement log can be printed if a parallel printer is connected.

Download Brochure

Heavy Vehicle Diagnostic Systems

Gas Analyser infralyt CL Benefits Include:

  • Robust compact garage unit (Compact Line)
  • Excellent Price/performance ratio
  • Optional integrated journal printer or connection to an A4 printer
  • Possibility of user guidance through Hand-Held unit or PC/Notebook
  • Easy to adapt to national requirements
  • Priming of steelwork with Redox Primer

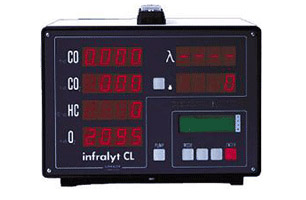

This compact unit can be supplemented by a Diesel Exhaust Tester and can be upgraded to the "Professional" Version by adding a PC or "Mobile" version by connecting to a Laptop/notebook.

This compact unit can be supplemented by a Diesel Exhaust Tester and can be upgraded to the "Professional" Version by adding a PC or "Mobile" version by connecting to a Laptop/notebook.

Technical Specifications - infralyt CL

Model

INFRALYIT CL

Measuring ranges

CO / 0-10% Vol

CO2 / 0-20% Vol

HC / 0-2500ppm

O2 / 0-21% Vol

Lambda calculation

0 - 9,9999 (by Brettschneider)

RPM measuring range

400 - 9999 min-1

Connectable transducers

Inductive clamp

Ignition pulse antenna

Dwell angle probe

Optical sensor

Diagnostic connector and slack point sensor

Temperature Measuring range

0- 130ºC

Working Temperature

5- 45ºC

Accuracy

OIML Class 1 and 0

Interfaces

Parallel printer connection

Hand-Held unit connection

RS 232, CAN

CARB-plug (OBD-connector)

Supported Standards are:

OBD - Modules

ISO DIS 14230-4 (KW2000)

ISO 9141-2

SAE J 1850 (mode PWM and VPM) according SAE 1978

ISO-DIS 15765-4 (CAN)

Dimensions (WxHxD)

294mm x 203mm x 430mm

Mass

Approx 9kg
