Linfox Hazelmere

linfox hazelmere, perth wa

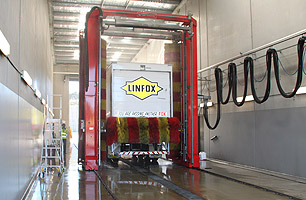

Roll over truck wash system

Continuing on from numerous Hartex roll over truck wash machines installed for Linfox in other states, this site was equipped with an Istobal Roll Over machine also equipped with touch free high pressure washing.

The system also incorporated a sophisticated underbody wash to remove the stupbourn red oxide from trucks arriving from Pt Headland, and a purpose designed water filtration system to maximize water re-use given the site had no access to sewer.

Machine Specification – Istobal 4PJ Roll Over now superseded by the Istobal Progress 4HWP - Read more >>

Project Details

  • Linfox Perth WA, Roll Over Truck Wash
  • Completed 2012

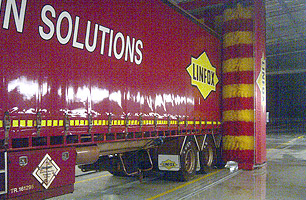

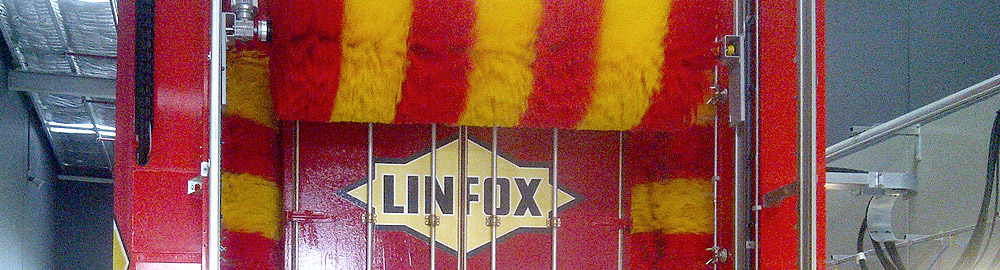

Colour coded truck wash machine and brushes

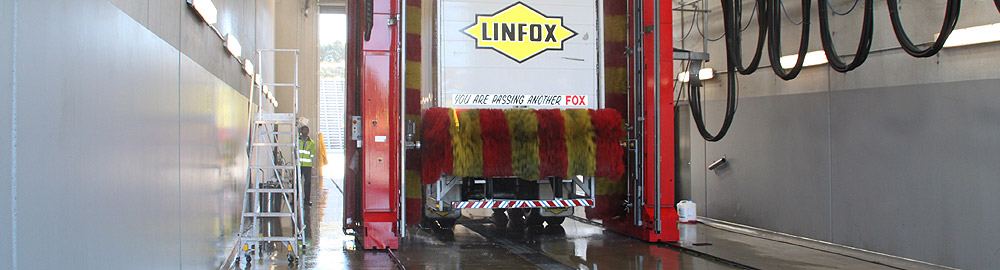

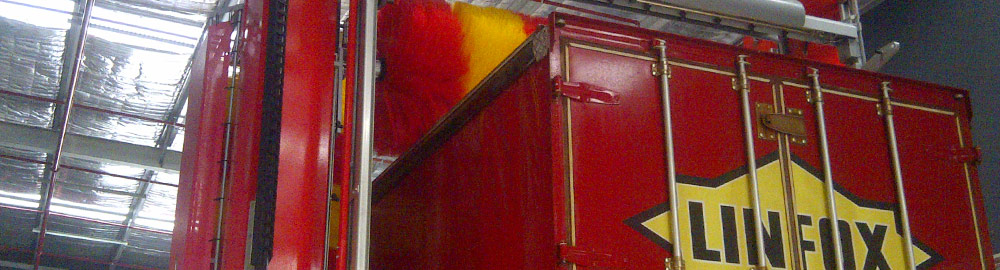

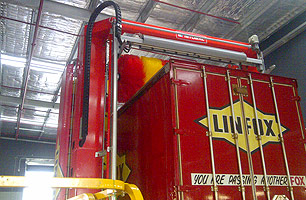

You are passing another clean FOX!

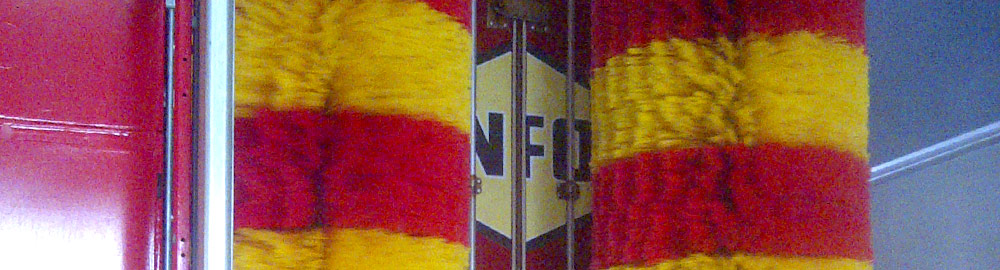

Colour coded truck wash machine and brushes

Don't settle for static high pressure bars that simply don't work

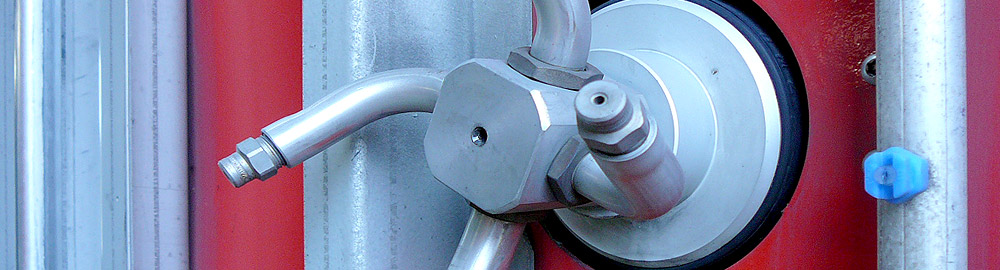

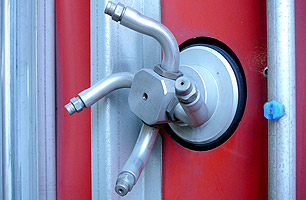

Special high pressure spinning nozzles for an unparalleled clean

Twin high pressure pumps mounted to a floor mounted skid – hot water capable.

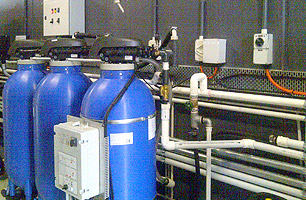

Sophisticated set and forget – self back washing water filters

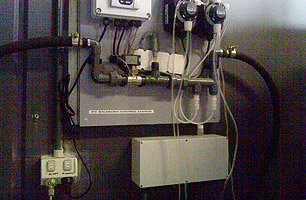

Automated ph dosing system to neutralise acids and detergents used in the wash process.

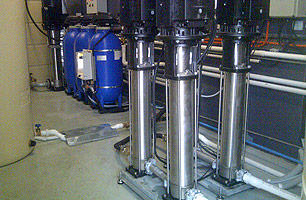

High-pressure pump sets. Best of bread Grundfos pumps – 2 sets of 2 x 22kW

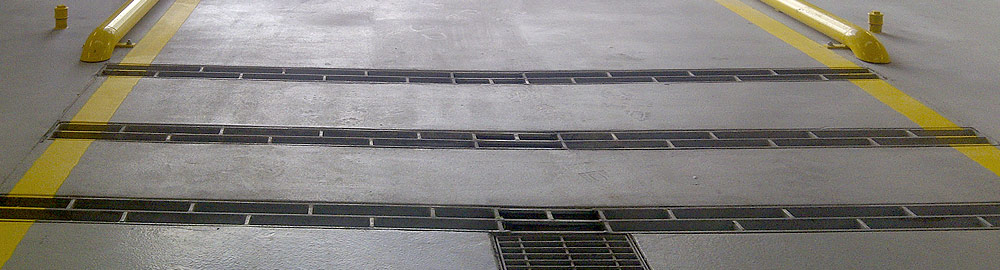

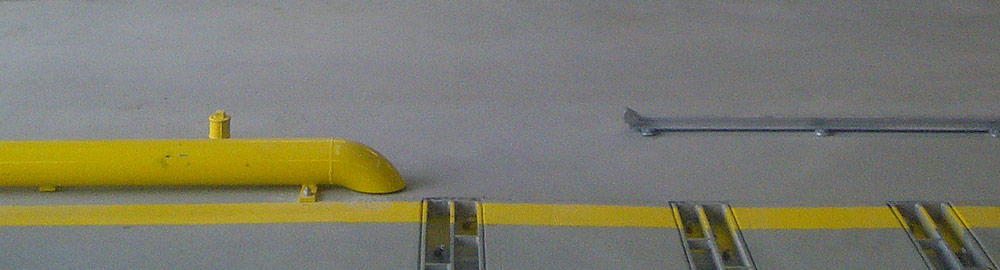

Underchassis wash system

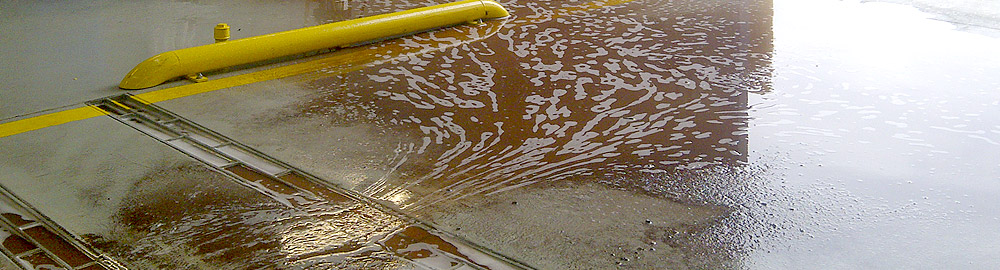

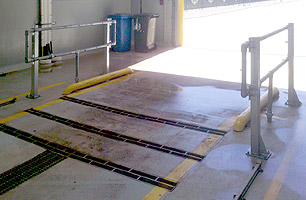

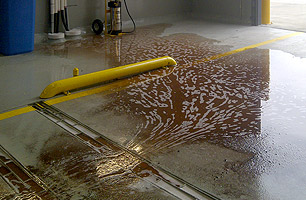

Run off mud from wash cycle

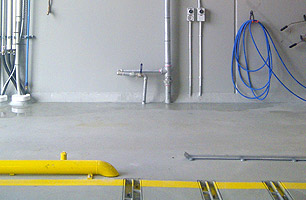

Side high press wash accessories complete the bay
